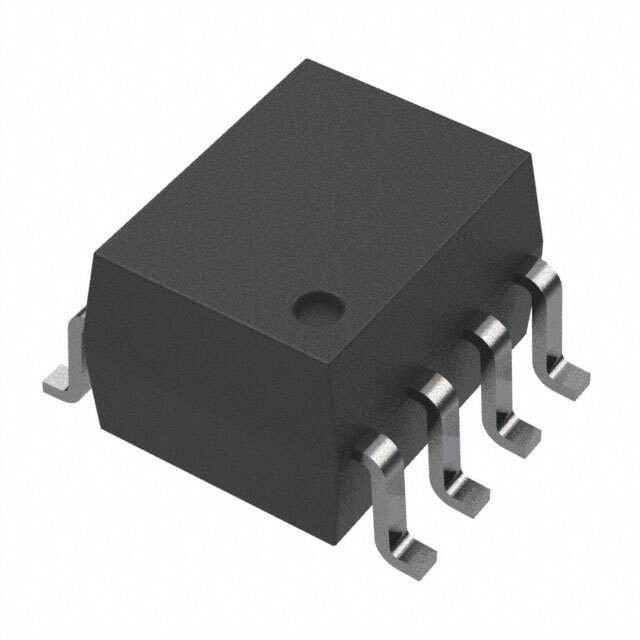

ELD207(TA)-V

Part No ELD207(TA)-V
Manufacturer Everlight Electronics Co Ltd
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV 2CH TRANS 8-SOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
Number of Channels 2
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Switching Turn-On and Turn-Off Time 5μs, 4μs
Rise and Fall Time 1.6μs, 2.2μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Forward Voltage 1.2V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 8-SOP
Win Source Part Number 139458-ELD207(TA)-V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ELD207
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian ELD207(TA)-V CAD Model

Description

ELD207(TA)-V Enhanced LED Module

The ELD207(TA)-V is a high-efficiency LED module that caters to demanding applications requiring precision and reliability.

  • Best suited for electronic scoreboards and information displays.
  • Ideal for projects in harsh environments where durability is paramount.

Features and Benefits:

  • Robust Build Quality: Engineered to withstand challenging conditions.
  • Superior Luminosity: Perfect for applications needing clear visibility.
  • Wide Voltage Range: Offers flexibility across various power supplies.

Additional Details: With its robust feature set, the ELD207(TA)-V provides a reliable solution for innovative projects where consistent performance is critical.
