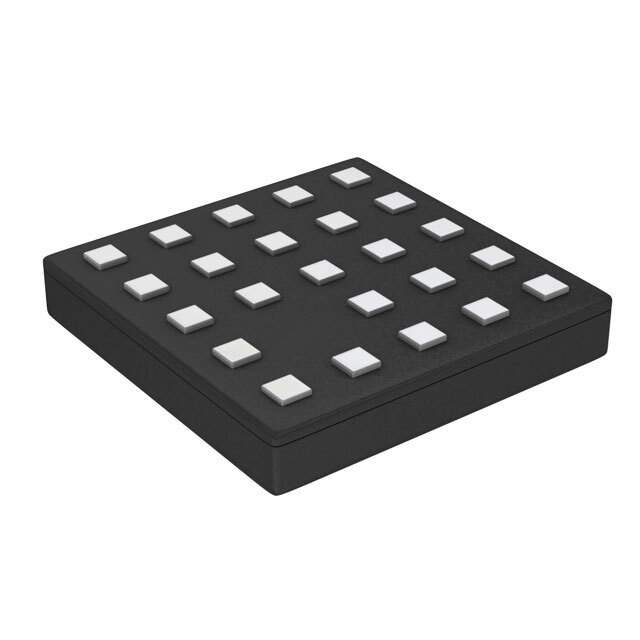

Introducing the PCAL6416AEX1Z by NXP Semiconductors

The PCAL6416AEX1Z is a state-of-the-art, low-voltage 16-bit General Purpose Input/Output (GPIO) expander with an I²C-bus/SMBus interface and interrupt. Designed by NXP Semiconductors, a leader in the field, this device is engineered to enhance the efficiency of I²C-bus/SMBus operations in a variety of applications.

The PCAL6416AEX1Z is particularly well-suited for server applications, mobile phones, and other devices that require a large number of GPIOs. It offers an extended feature set that makes it more versatile than traditional GPIO expanders, providing enhanced interface flexibility and operational efficiency.

Key Features

• High-Performance I²C Interface: With Fast-mode Plus (Fm+) I²C-bus capable of up to 1 MHz operation, the PCAL6416AEX1Z ensures high-speed communication and data transfer.
• Low Standby Current: Its optimized power consumption makes it ideal for battery-powered devices, ensuring minimal impact on battery life when in standby mode.
• Enhanced Configuration: It features configurable polarity inversion and pull-up/pull-down resistors, granting designers greater control over input signal processing and output drive configuration.
• Robust Interrupt Functionality: The interrupt output is activated by input state changes, allowing for immediate system responses without the need for constant polling, thereby reducing system power consumption.
• Compatibility: It is compatible with most microcontrollers and is available in a small TSSOP24 package, making it easy to integrate into existing designs without significant board rework.

Applications

The versatility of the PCAL6416AEX1Z allows it to be used in a wide range of applications, including:

• Server motherboards and hardware management
• Industrial control and automation systems
• Portable and wearable devices
• Smart home devices and IoT applications

With its advanced capabilities and NXP's commitment to quality, the PCAL6416AEX1Z is an excellent choice for designers looking to expand the GPIO capabilities of their systems with minimal power consumption and maximum efficiency.
