Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr NXP USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Type Linear
Topology -
Internal Switch(s) Yes
Number of Outputs 24
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 5.5V
Voltage - Output 0.4V ~ 5.5V
Current - Output / Channel 32mA
Frequency -
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad
Supplier Device Package 40-HVQFN (5x5)
Base Product Number PCA9957
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1368370-PCA9957HNMP
Ultra Librarian 3D Model Ultra Librarian PCA9957HNMP CAD Model

Description

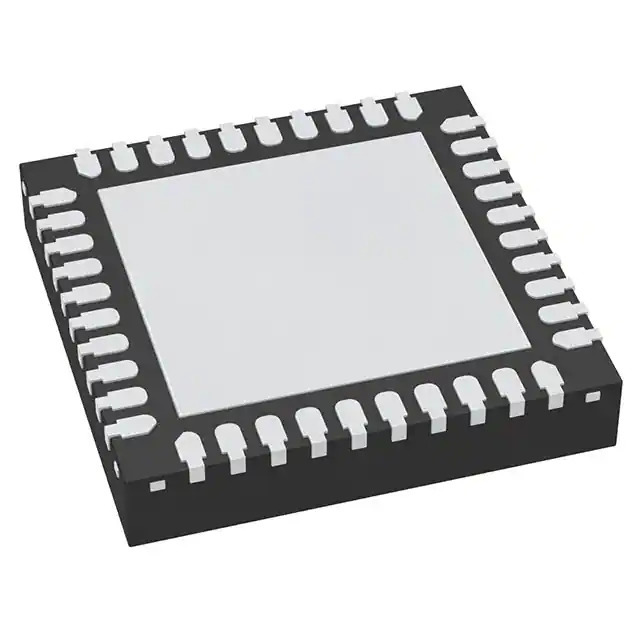

NXP PCA9957HNMP LED Driver IC

The NXP PCA9957HNMP is a sophisticated LED driver integrated circuit designed to address the increasing demand for high-density LED control in various lighting applications. This device is part of NXP Semiconductors' expansive portfolio of lighting solutions, specifically tailored to enhance the performance and efficiency of LED arrays.

Key Features:

  • Channel Count: The PCA9957HNMP boasts an impressive 24-channel constant current sink output, allowing for the control of multiple LEDs simultaneously.
  • Output Current: Each channel can drive up to 57 mA (with a maximum total output current of 200 mA), and users can adjust the current from 0 mA to 57 mA through an external resistor.
  • Dimming Capability: It features 256-step (8-bit) PWM control per channel, which enables smooth and precise brightness control for each connected LED.
  • Error Detection: The device includes error detection features such as LED open detection, LED short detection, and over-temperature detection, ensuring safe and reliable operation.
  • Communication Interface: The PCA9957HNMP communicates via an I²C-bus interface and supports up to 64 programmable I²C-bus addresses, making it highly flexible for complex lighting designs.
  • Supply Voltage: It operates on a power supply voltage ranging from 3 V to 5.5 V, suitable for a wide range of LED lighting applications.
  • Package: The device comes in a compact HVQFN40 package, which is ideal for space-constrained applications.

Applications:

The PCA9957HNMP is designed for use in a variety of applications, such as:

  • RGB or RGBA LED displays
  • LED signboards and billboards
  • Backlighting systems for LCD TVs, monitors, and automotive displays
  • General-purpose LED lighting
  • Industrial and architectural lighting

Conclusion:

With its robust feature set and high channel count, the NXP PCA9957HNMP LED driver is an ideal choice for designers looking to create sophisticated, efficient, and reliable LED lighting solutions. Its advanced capabilities ensure precise control and long-term operation, cementing its place as a go-to component in the LED driver market.
