NXP PCA9685BS 16-Channel 12-bit PWM Servo Driver

The NXP PCA9685BS is a highly versatile 16-channel, 12-bit PWM (Pulse Width Modulation) servo driver designed to run multiple servo motors with high precision and minimal interface from the host controller. This IC is an indispensable component for robotics, animatronics, lighting control and LED color mixing, and any project where numerous PWM signals are required.

At the heart of the PCA9685BS is its I²C-bus interface, which allows for easy interfacing with most microcontrollers, including popular platforms like Arduino and Raspberry Pi. The I²C interface minimizes the number of pins required to control the device, freeing up resources on the host controller for other tasks. Up to 62 of these devices can be connected on the same I²C-bus by setting different addresses, offering the possibility to control up to 992 PWM outputs in total.

Each of the PCA9685BS's 16 output channels can be set to have its own PWM frequency and duty cycle, allowing for precise control of motors and LEDs. The PWM frequency is adjustable from about 24Hz to 1526Hz, which is suitable for driving both servo motors and dimming LEDs without any perceivable flicker. Additionally, the device's 12-bit resolution provides 4096 steps of PWM control, which means it can produce smooth transitions and fine-grained control over connected devices.

The PCA9685BS also includes a built-in oscillator for PWM control, which removes the need for an external clock source. This feature simplifies the design and reduces the overall bill of materials. Moreover, the chip supports a "sleep" mode that significantly reduces power consumption when the PWM outputs are not needed, making it an excellent choice for battery-powered applications.

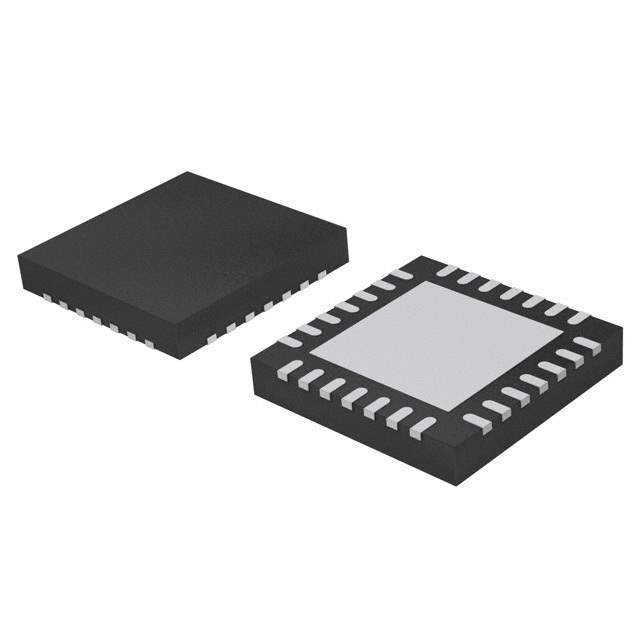

Available in a compact surface-mount package, the PCA9685BS is designed for space-constrained applications. Its robust design ensures reliable operation over a wide temperature range, making it suitable for industrial and consumer applications alike. Whether you are a hobbyist or a professional engineer, the NXP PCA9685BS provides the control and flexibility you need for your next project.
