Products specifications

Categories Integrated Circuits (ICs)

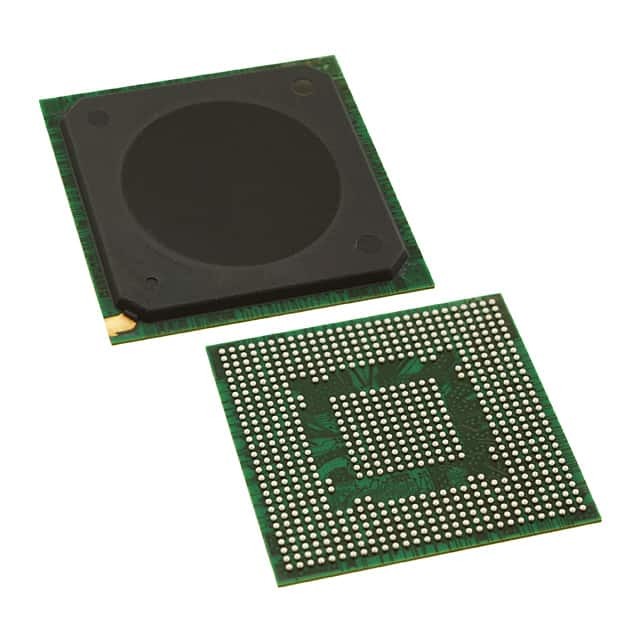

Features PowerPC e500v2 Microprocessor IC series 1 Core, 32-Bit 800MHz 689-TEPBGA II (31x31)
Manufacturer NXP
Series QorIQ P1
Package Tray
Core Processor PowerPC e500v2
Speed 800MHz
Operating Temperature Range 0°C ~ 125°C (TA)
Package 689-BBGA Exposed Pad
Case / Package 689-TEPBGA II (31x31)
Family Name P1011
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 27
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929767-P1011NSN2DFB
Ultra Librarian 3D Model Ultra Librarian P1011NSN2DFB CAD Model

Description

Introducing the NXP P1011NSN2DFB Processor

The NXP P1011NSN2DFB is a high-performance, power-efficient processor designed to meet the demands of a wide range of applications, from networking and telecommunications to industrial control and automation. This robust processor is part of NXP's QorIQ P1 family, leveraging Power Architecture® technology to deliver exceptional speed and reliability.

At the heart of the P1011NSN2DFB lies a single-core e500 processor that operates at speeds up to 800 MHz. This core is built on Power Architecture technology, renowned for its high data throughput and optimized power consumption. The processor is equipped with a rich set of integrated peripherals and interfaces, making it an ideal solution for embedded systems that require a compact footprint without compromising on functionality.

Key Features:

  • Single e500 Power Architecture core, providing a balance of performance and power efficiency.
  • Operating frequencies up to 800 MHz, enabling quick processing and fast data handling.
  • Integrated security engine, supporting a variety of algorithms to ensure data protection and secure communications.
  • Dual integrated Gigabit Ethernet controllers, facilitating high-speed networking capabilities.
  • PCI Express® and USB 2.0 interfaces, offering flexible connectivity options for a range of peripheral devices.
  • DDR2/DDR3 memory controller, allowing for versatile memory solutions and ensuring fast access to stored data.
  • Low power consumption, making it suitable for energy-sensitive applications.

The P1011NSN2DFB also features NXP's advanced power management techniques, which contribute to its low-power profile. These features enable the processor to dynamically adjust power usage based on workload, further enhancing its suitability for power-constrained environments.

With its robust security features, the P1011NSN2DFB ensures that applications are not only fast and efficient but also secure from external threats. The integrated security engine supports a variety of encryption and hashing algorithms, including AES, DES, 3DES, SHA, and RSA, providing the necessary tools to protect sensitive data and maintain secure communication channels.

Whether you are developing a network router, an industrial gateway, or a sophisticated control system, the NXP P1011NSN2DFB processor delivers the performance, connectivity, and security you need to build a reliable and efficient product.
