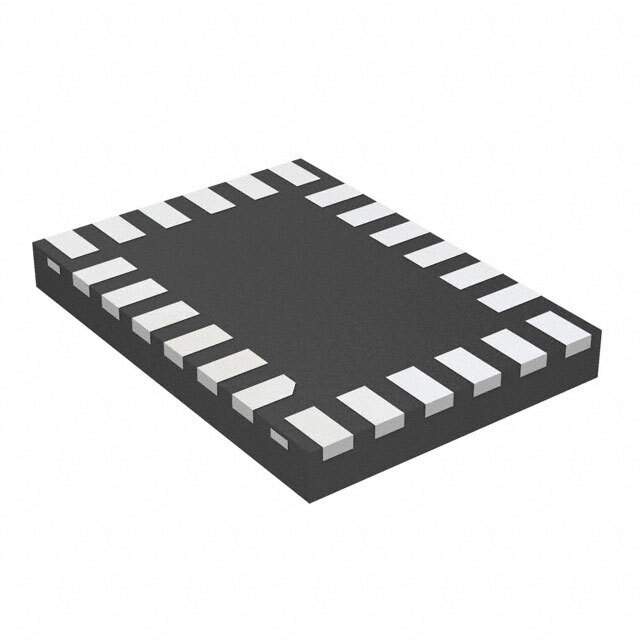

The NX3DV642GU from NXP Semiconductors is a versatile high-speed HDMI switch designed for advanced video and audio signal routing. It is an ideal solution for consumer electronics, enabling smooth and efficient switching between different HDMI sources. This product is part of NXP's high-performance signal switching portfolio and is tailored for applications that require high bandwidth and signal integrity.

Key Features

• High-Speed Performance: The NX3DV642GU supports HDMI 1.4 specifications and is capable of transmitting high-definition video and audio signals without degradation, ensuring a premium multimedia experience.
• Multiple Channels: This switch features three differential channels that can support 250 Mbps to 3.4 Gbps data rates, making it suitable for HD 1080p, 3D video, and deep color modes.
• Low Power Consumption: Designed with power efficiency in mind, the NX3DV642GU operates with a low power consumption, which is crucial for portable and battery-powered devices.
• Advanced Switching: With bi-directional switching capabilities, the device allows for flexible signal routing and is compatible with the latest HDMI features such as Ethernet channel, audio return channel, and content type bits.
• Robust ESD Protection: The NX3DV642GU is equipped with integrated ESD protection to safeguard the device against electrostatic discharges, enhancing its durability and reliability in various operating environments.
• Compact Packaging: Housed in a compact TSSOP24 package, the switch is designed to fit into space-constrained applications without compromising performance.

Applications

The NX3DV642GU is suitable for a wide range of applications, including:

• Digital TVs and Smart TVs
• Set-top boxes and DVRs
• Blu-ray players and gaming consoles
• Home theater systems
• AV receivers
• PCs and laptops with HDMI ports

With its high-speed switching capabilities, the NXP NX3DV642GU is the perfect choice for manufacturers and designers looking to create seamless and user-friendly multimedia systems.
