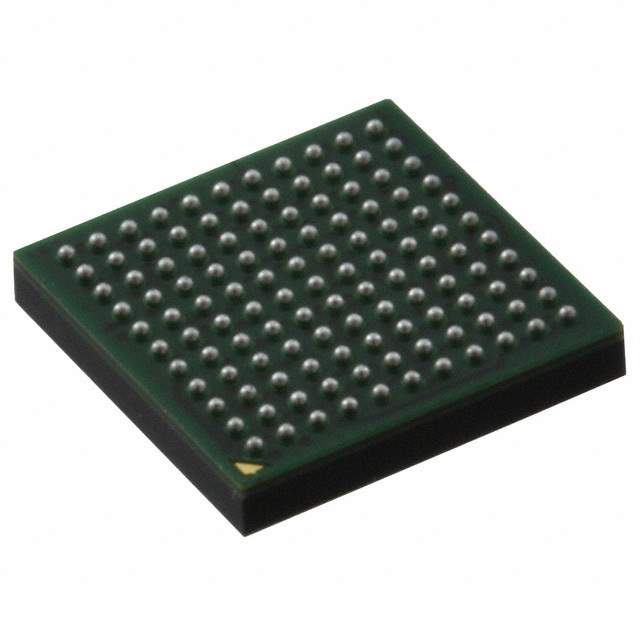

The NXP MK22FN1M0AVMC12 is a high-performance microcontroller unit (MCU) from the Kinetis K series, which is designed for a wide range of applications. This MCU is built on the ARM Cortex-M4 core, offering a perfect blend of energy efficiency and processing power, with a frequency of up to 120 MHz. It is an ideal choice for embedded applications requiring sophisticated control and connectivity features.

Key Features

• Core: ARM Cortex-M4 processor with DSP and floating-point unit (FPU) capabilities.
• Memory: 1MB flash memory and 256KB RAM, ensuring ample space for complex applications and data storage.
• Performance: Operating frequency of up to 120 MHz, delivering the computational power needed for intensive tasks.
• Communication Interfaces: Multiple communication options including UART, SPI, I2C, and USB, providing excellent connectivity solutions.
• Analog Modules: Integrated analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) for precise signal processing.
• Timers: A variety of timers including PWM, general-purpose, and low-power timers to handle a wide range of timing tasks.
• Security: Features security and integrity modules, including a hardware random-number generator and a cryptographic acceleration unit.

Applications

The NXP MK22FN1M0AVMC12 is suitable for a diverse array of applications, such as industrial control systems, home automation, medical devices, and IoT endpoints. Its robust feature set also makes it a strong candidate for automotive systems, wearables, and smart metering solutions.

Design Support

NXP provides comprehensive design support for the MK22FN1M0AVMC12, including reference manuals, datasheets, and development tools. The MCU is also supported by the NXP software development kit (SDK), which includes software libraries, drivers, and example code to accelerate the development process.
