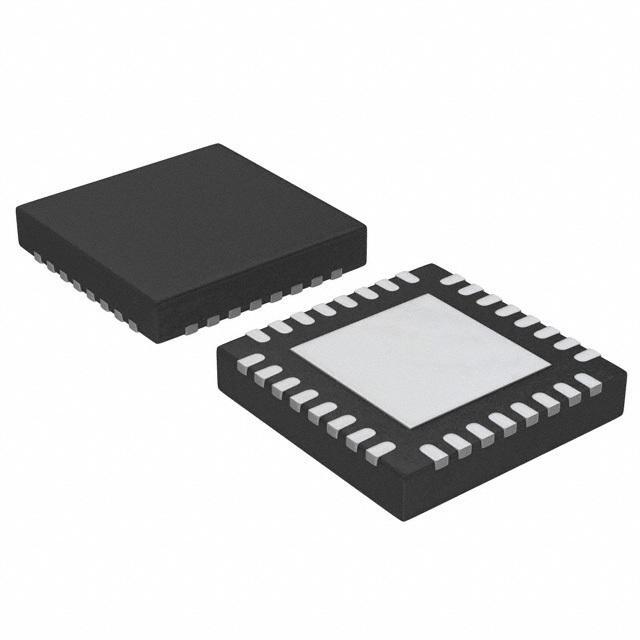

The NXP MFRC522 is a highly integrated transmission module for contactless communication at 13.56 MHz. This versatile reader IC is a member of a highly respected family of chips that support the ISO/IEC 14443 A/MIFARE protocol as well as the ISO/IEC 14443 B protocol. The MFRC522's primary use is within applications such as smart cards, e-passports, identification, and NFC payment systems where secure and reliable communication is paramount.

Key Features

• Highly Integrated: The MFRC522 includes a transceiver, analog front-end, and a serial communication interface in one compact package.
• Support for MIFARE and NTAG: Compatibility with MIFARE products ensures that this IC can be used for a wide range of applications in public transportation, access management, and loyalty programs.
• Energy Efficiency: The IC has a power-down mode and an automatic power-saving mode to minimize energy consumption when not actively in use.
• Flexible SPI Interface: The Serial Peripheral Interface (SPI) allows for easy integration with most microcontrollers, providing a versatile solution for embedded systems.
• Antenna Connection: The IC offers a simple connection to an antenna with minimal external components, streamlining the design process for RF applications.

Applications

The MFRC522 is suited for a variety of applications where contactless communication is needed. Its robust and secure communication capabilities make it ideal for:

• Access Control Systems
• Public Transport Ticketing
• Electronic Payment Systems
• RFID Systems
• NFC-enabled devices

Technical Specifications

The NXP MFRC522 operates at a frequency of 13.56 MHz with a typical operating distance of up to 50 mm, depending on the antenna size and tuning. It supports ISO/IEC 14443 A/MIFARE and ISO/IEC 14443 B communication protocols, ensuring broad application compatibility. The module also features a CRC coprocessor, multiple host interfaces, and an internal transmitter and receiver. This makes it a comprehensive solution for designers looking to incorporate contactless communication capabilities into their products.
