Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks

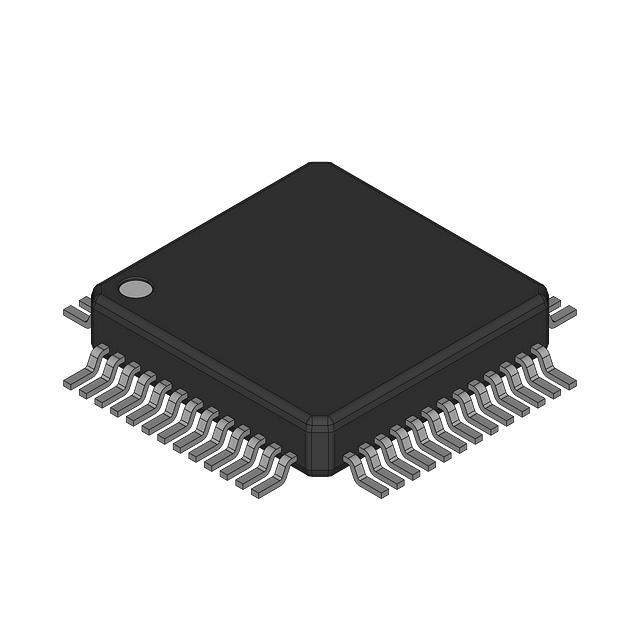

Features HCS12 series Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 52-TQFP (10x10)
Manufacturer NXP
Series HCS12
Package Tray
Core Processor HCS12
Core Size 16-Bit
Speed 25MHz
Connectivity CANbus, EBI/EMI, SCI, SPI
Peripherals POR, PWM, WDT
Number of I/O 35
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
Supply Voltage 2.35V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 52-LQFP
Case / Package 52-TQFP (10x10)
Family Name MC9S12
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 160
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883917-MC9S12C128MPBE
Ultra Librarian 3D Model Ultra Librarian MC9S12C128MPBE CAD Model

Description

The NXP MC9S12C128MPBE is a sophisticated 16-bit microcontroller designed to cater to the demanding requirements of automotive and industrial applications. This high-performance microcontroller is part of NXP's HCS12 family, which is renowned for its integration and efficiency in embedded systems.

Key Features

  • CPU: 16-bit HCS12 core, with up to 25 MHz bus speed.
  • Memory: 128 KB of Flash memory, which provides ample space for complex programming and 8 KB of RAM for efficient data processing.
  • Advanced Interrupt Capability: Includes a vectored interrupt controller for fast response to multiple sources of interrupts.
  • Digital I/O: Provides numerous digital input/output channels for versatile control and interfacing with external devices.
  • Timers: Enhanced capture/compare timer modules for precise event timing and waveform generation.
  • Communication Interfaces: Multiple Serial Communication Interface (SCI) modules, Serial Peripheral Interface (SPI) modules, and an Inter-Integrated Circuit (I²C) bus for robust communication options.
  • Package: 112-Pin LQFP (Low Profile Quad Flat Package) for a compact footprint and efficient space utilization on circuit boards.
  • Operating Voltage: Designed to operate within a range of 2.35V to 5.25V, suitable for a variety of power environments.
  • Temperature Range: Capable of operating over an industrial temperature range, making it reliable in extreme conditions.

Applications

Due to its robust feature set, the NXP MC9S12C128MPBE is ideal for applications that require complex control systems and real-time processing. These applications include but are not limited to automotive control systems, robotics, industrial control units, and sensor networks.

Reliability and Support

NXP provides extensive support for the MC9S12C128MPBE microcontroller, with comprehensive documentation, development tools, and software libraries to assist developers in creating efficient and reliable applications. The commitment to quality and long-term availability makes this microcontroller a preferred choice for engineers looking for a stable and well-supported platform.
