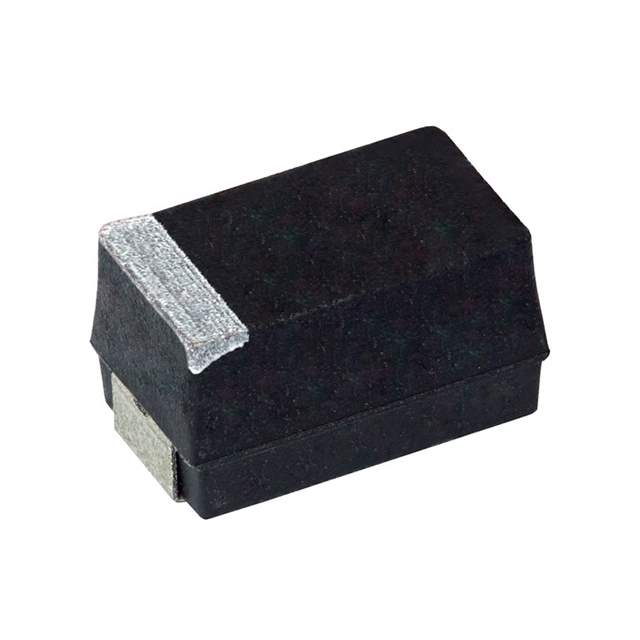

Products specifications

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 100μF
Tolerance ±20%
Voltage Rating 10V
Type Molded
ESR 100 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 006313-593D107X0010D2TE3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 593D107X0010D2TE3 CAD Model

Description

The 593D107X0010D2TE3 capacitor is a versatile component offering a 10μF capacitance and a voltage rating of 10V, perfect for use in power management and data transmission systems.

Features and Benefits

  • Standardized dimensions for easy integration in circuit boards
  • Durable tantalum construction ensures minimal degradation over time
  • Low leakage current for improved energy efficiency
  • Smooth performance even in extreme temperature ranges

Applications

  • Switching power supply filtration
  • Memory backup systems
  • Data transmission systems enhancing signal integrity
  • Consumer electronics like smartphones and tablets

Additional Details

Designed to meet the high demands of modern electronics, this capacitor provides a robust solution for maintaining reliable operation across varied platforms.
