Product Overview: MC9S08RG60CFJ

The MC9S08RG60CFJ is a high-performance microcontroller unit (MCU) from NXP Semiconductors, designed for a wide range of applications requiring robust operation, low power consumption, and flexible interfacing options. This MCU is part of the S08 family and is built on NXP's HCS08 core, which offers a perfect balance between speed and power efficiency.

Key Features

• Core: This device features a 20 MHz HCS08 CPU providing the power and flexibility of a high-speed 8-bit processing core, complete with a rich instruction set and efficient addressing modes.
• Memory: It comes with 60KB of flash memory, allowing ample space for complex programs and 4KB of RAM for efficient data handling.
• Timers: Multiple flexible timers including an 8-channel, 16-bit timer/pulse-width modulator (TPM) provide extensive timing and control capabilities.
• Communication Interfaces: The MCU offers a variety of communication interfaces such as I2C, SPI, and SCI for easy integration into different systems and for facilitating communication with peripherals.
• Analog-to-Digital Converter: An integrated 10-bit ADC with multiple channels expands the MCU's capabilities in sensor-based applications.
• Operating Voltage: It operates within a voltage range of 1.8V to 3.6V, making it suitable for battery-powered and portable applications.
• Temperature Range: The device is operational over an industrial temperature range of -40°C to +85°C.

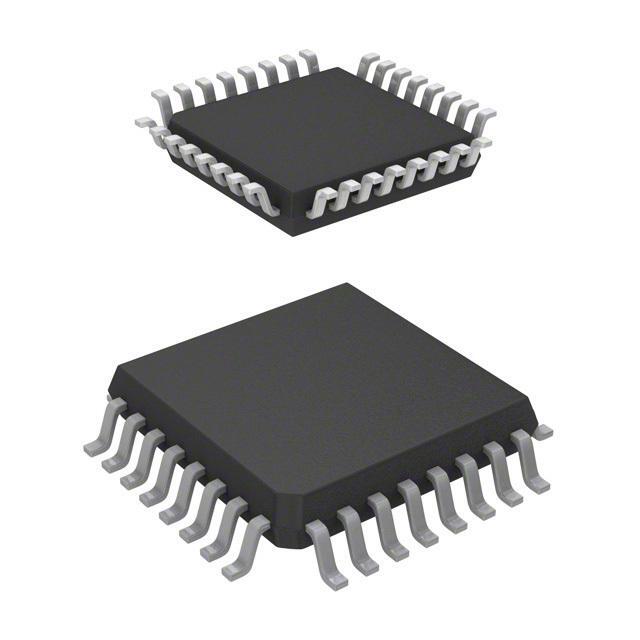

• Packaging: The MC9S08RG60CFJ is available in a 32-pin LQFP package, which is ideal for space-constrained applications.

Applications

The versatility of the MC9S08RG60CFJ makes it ideal for a broad spectrum of applications, including but not limited to industrial control systems, automotive electronics, consumer electronics, and smart sensors. Its robust feature set ensures that it can meet the requirements of complex embedded systems while maintaining cost-effectiveness and ease of integration.

Conclusion

With its blend of performance, memory, and rich peripheral set, the NXP MC9S08RG60CFJ MCU stands out as a highly capable component for designers looking to develop advanced, yet power-conscious, applications. Its extensive support and documentation further ease the development process, making it a go-to choice for engineers across various industries.
