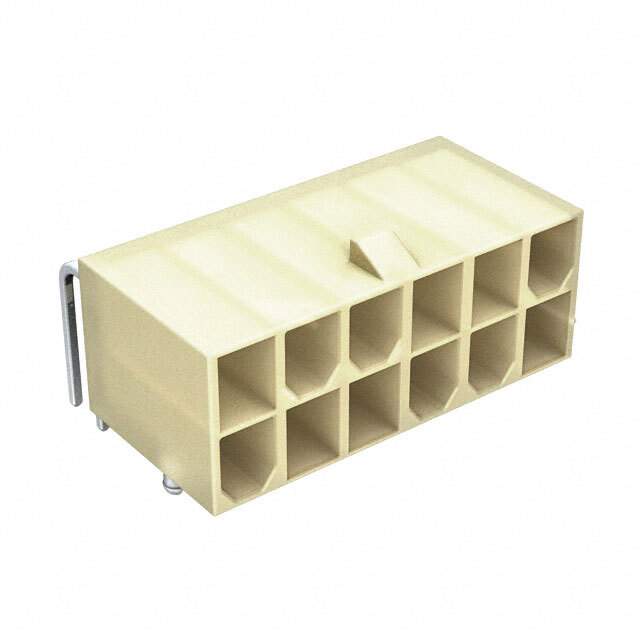

Part No 0039301120
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 4.2MM / Connector Header Through Hole, Right Angle 12 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003930
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0039-30-1120-P,39301120,WM1356,5569-12A2,39-30-1120-P,39301120-P,0039301120-P,0039-30-1120,39-30-1120
Standard Package 1,200
Win Source Part Number 1332485-0039301120
Ultra Librarian 3D Model Ultra Librarian 0039301120 CAD Model

Description

The Molex 0039301120 is a rectangular connector designed for headers and male pins.

  • Packaging: Bulk
  • Positions Loaded: 12
  • Features: Board Lock
  • Contact Type: Male Pin
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Applications: General Purpose, Industrial, and Telecommunications
  • Standard Package: 1,200 pieces
  • Mounting: Through Hole and Right Angle
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Pitch-Mating: 0.165 inches (4.20mm)
  • HTSUS Code: 8536.69.4040
  • ROHS3 Compliant: Yes
