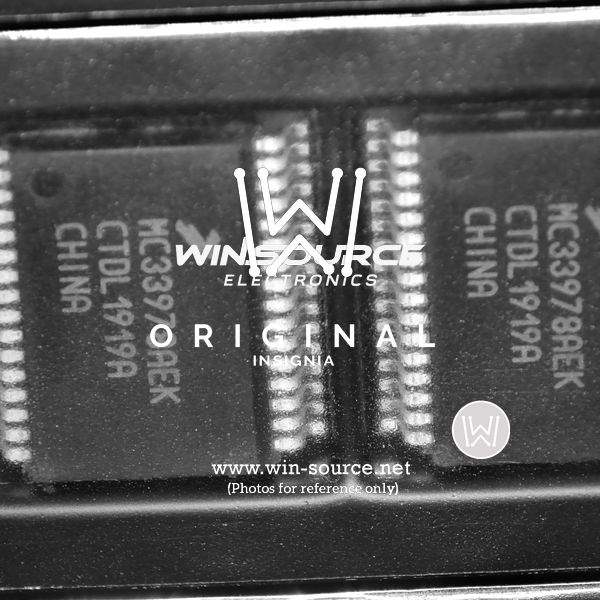

NXP MC33978AEKR2 Multiple Switch Detection Interface

The NXP MC33978AEKR2 is a sophisticated Multiple Switch Detection Interface (MSDI) designed to detect the closing and opening of up to 22 switch contacts. This versatile component is an ideal solution for automotive and industrial applications that require monitoring a multitude of switch states through a single device. With its robust design, the MC33978AEKR2 is engineered to withstand the harsh conditions of automotive environments, ensuring reliable performance over a wide range of temperatures and voltages.

One of the key features of the MC33978AEKR2 is its ability to operate with a low quiescent current, which makes it particularly well-suited for applications where power efficiency is crucial. The device supports wetting current capabilities for switch contacts, ensuring accurate switch detection even in the presence of contamination or oxidization. This ability to maintain high performance in adverse conditions is critical for maintaining the safety and reliability of vehicle control systems.

The MC33978AEKR2 includes a variety of diagnostic features that provide valuable feedback on system status and health. These diagnostics can detect open and short circuits, allowing for swift identification and resolution of issues within the system. Additionally, the device offers a serialized state change output mode, which can reduce the number of microcontroller inputs required to monitor switch states, simplifying system design and potentially reducing overall system cost.

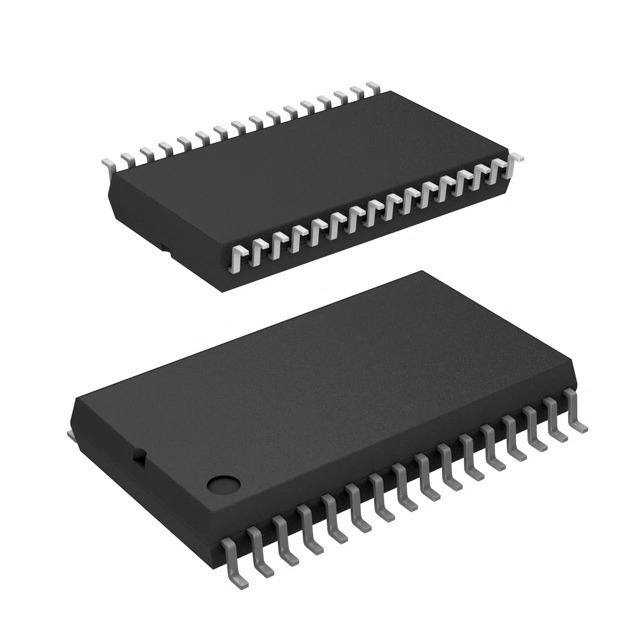

This interface is housed in a compact 32-pin LQFP package, making it suitable for space-constrained applications. It is designed to interface directly with microcontrollers via an SPI port, offering ease of integration into existing systems. The MC33978AEKR2 operates over a broad voltage range of 5.5 V to 27 V, and it is protected against reverse battery conditions, enhancing its durability and lifespan.

In summary, the NXP MC33978AEKR2 Multiple Switch Detection Interface is a high-performance, power-efficient solution for monitoring multiple switch inputs. With its extensive diagnostic capabilities and robust design, it stands out as an exceptional choice for automotive and industrial applications where reliability and accuracy are paramount.
