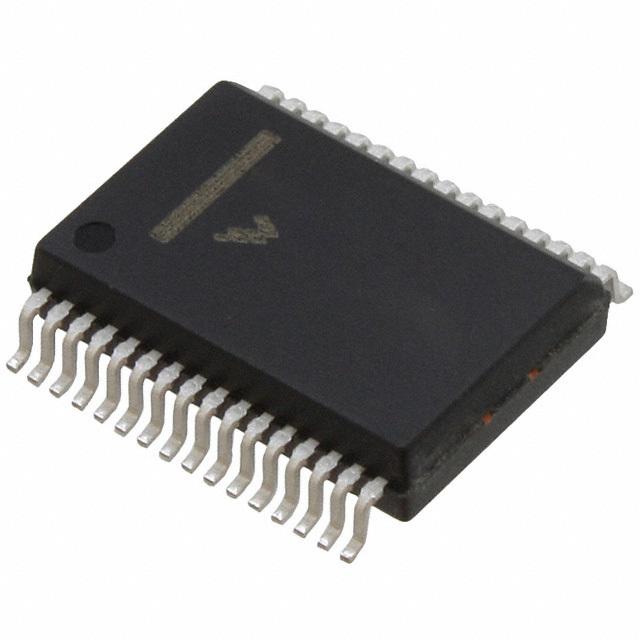

The NXP MC33972TEW is a sophisticated switch detection interface designed to detect the status of external switches. This integrated circuit is part of NXP's extensive portfolio of automotive-grade products, tailored to meet the rigorous standards of the automotive industry. The device is particularly well-suited for applications where multiple switch states need to be monitored without the need for multiple direct inputs into a microcontroller.

Key Features

• Multiple Input Monitoring: Capable of interfacing with up to 22 switch inputs, this device simplifies the design of complex input systems.
• SPI Interface: Features a Serial Peripheral Interface (SPI) for communication with microcontrollers, providing both flexibility and speed in data transfer.
• Wet/Dry Configuration: The MC33972TEW can be configured for either wet or dry switch detection, accommodating a variety of switch types and applications.
• Versatile Voltage Range: Operates over a broad range of supply voltages, from 6V to 26V, ensuring reliable performance in diverse automotive environments.
• Robust Design: The device includes fail-safe features such as undervoltage detection and overtemperature shutdown, enhancing system reliability.

Applications

The MC33972TEW is ideal for automotive applications, including body control modules, panel switch detection, and other in-vehicle networks that require extensive switch monitoring. Its robust design ensures that it can withstand the harsh conditions typical of the automotive sector, making it a reliable choice for designers and engineers.

Technical Specifications

• Switch inputs: 22
• Supply voltage: 6V to 26V
• Communication interface: SPI
• Operating temperature: -40°C to 125°C

Overall, the NXP MC33972TEW offers a compact, reliable, and efficient solution for complex switch detection requirements in automotive and other demanding applications. Its integration of multiple features into a single chip makes it a valuable component for reducing system complexity and improving overall performance.
