The LPC2468FBD208 is a high-performance microcontroller designed by NXP Semiconductors, tailored for a wide range of applications, particularly in the industrial, medical, and automotive sectors. This powerful MCU is based on a 16/32-bit ARM7TDMI-S CPU with a maximum operating frequency of 72 MHz, which provides a perfect balance between processing power and power consumption.

Key Features:

• Core: ARM7TDMI-S processor, running up to 72 MHz.
• Memory: 512 KB on-chip flash memory for code and data storage, 98 KB of RAM for efficient data handling.
• Advanced Peripherals: Includes a variety of peripherals such as USB 2.0 Full Speed device/host/OTG, 10/100 Ethernet MAC, CAN 2.0B, and multiple serial interfaces (UART, I2C, SPI, SSP).
• ADC: 10-bit Analog-to-Digital Converter with multiple channels for precise measurement of analog signals.
• Timers: Multiple 32-bit timers, a motor control PWM, and a Quadrature Encoder interface ensure precise timing and control for a range of applications.
• External Interface: General Purpose DMA controller, External Memory Controller supporting various types of external memory interfaces.
• Power Management: Integrated power management unit with support for Idle and Power-down modes, which helps in reducing power consumption for energy-sensitive applications.

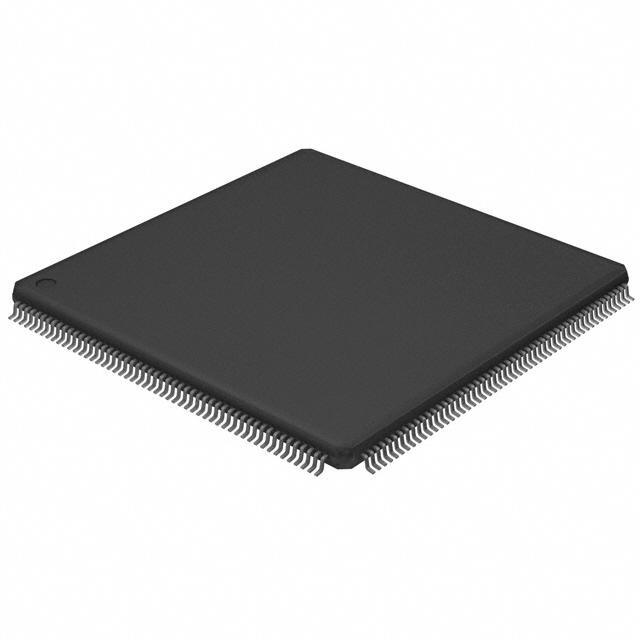

• Package: Available in a 208-pin LQFP package, providing ample I/O ports for complex applications.
• Debugging: On-chip debug support via JTAG interface simplifies development and troubleshooting.

Applications:

The LPC2468FBD208 is suited for a wide array of applications, thanks to its rich set of features and connectivity options. Its robust design makes it ideal for industrial control systems, robotics, medical instrumentation, network communication, automotive electronics, and complex embedded systems.

Development Support:

NXP provides extensive development support for the LPC2468FBD208 with software libraries, development kits, and a strong community forum. Developers can leverage these resources to reduce time-to-market and ensure that their products meet the highest standards of reliability and performance.
