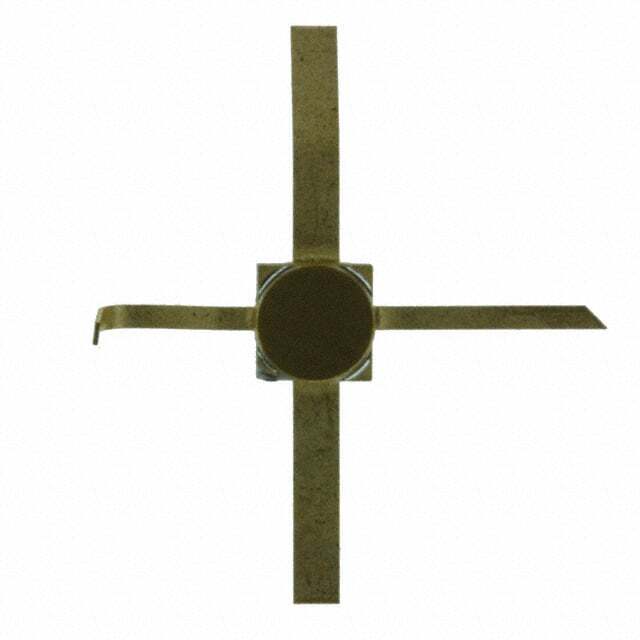

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Broadcom Limited
Package Bulk
Product Status Obsolete
Frequency 50MHz ~ 1.6GHz
P1dB 16dBm ~ 17.5dBm
Gain 11.5dB ~ 13.5dB
Noise Figure 3.5dB ~ 4dB
Voltage - Supply 4.5V ~ 5.5V
Current - Supply 90mA
Test Frequency 500MHz
Mounting Type Surface Mount
Package / Case 4-SMD (100 mil)
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 846826-MSA-1110
Ultra Librarian 3D Model Ultra Librarian MSA-1110 CAD Model

Description

The 846826-MSA-1110 is an RF amplifier designed for various wireless applications.

  • Frequency Range: 50MHz to 1.6GHz
  • Gain: 11.5dB to 13.5dB
  • Noise Figure: 3.5dB to 4dB
  • Supply Voltage: 4.5V to 5.5V
  • Current Consumption: 90mA
  • P1dB: 16dBm to 17.5dBm
  • Package Type: 4-SMD (100 mil)
  • Status: Obsolete
