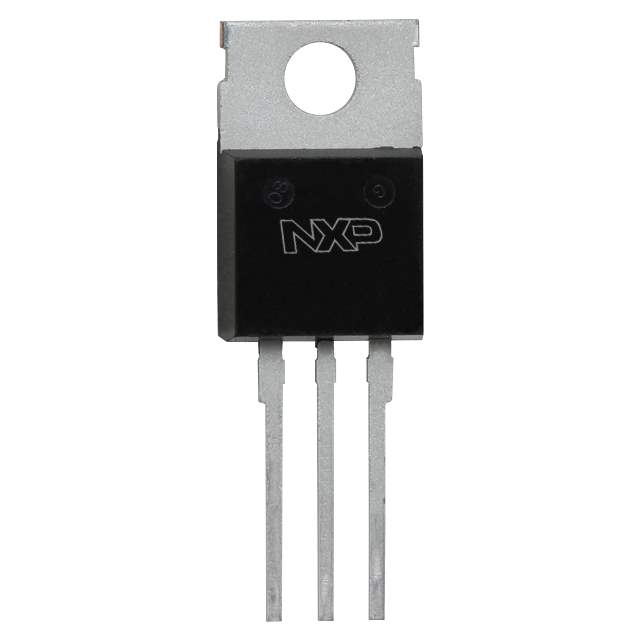

Product Overview: NXP BT139-800E Triac

The NXP BT139-800E is a high-performance, sensitive gate triac designed for use in a variety of AC power control applications. This robust semiconductor device is capable of switching and controlling large AC power loads with a small trigger current, making it ideal for interfacing with microcontroller logic circuits. The BT139-800E is a versatile component that provides an effective solution for AC switching, and phase control applications such as motor speed controllers, dimming circuits, and thermal control systems.

Key Features

• High Blocking Voltage: The triac has a maximum repetitive peak off-state voltage (VDRM) of 800V, which allows it to handle high voltage applications safely.
• High On-state Current: It can conduct an RMS current of up to 16A, and a non-repetitive peak on-state current of 160A, making it suitable for high current loads.
• Gate Trigger Current: The device has a sensitive gate which can be triggered with a low current, typically between 5mA to 35mA, depending on the quadrant of operation.
• Quadrant Operation: It is capable of triggering in all four quadrants, enhancing its control flexibility and making it suitable for applications requiring high sensitivity and full-wave control.
• Isolation Mounting: The triac comes in an isolated TO-220AB package, providing ease of mounting and thermal management, while also ensuring electrical isolation from the mounting surface.

Applications

The BT139-800E is an excellent choice for a wide range of applications where efficient AC power control is required. Its typical applications include:

• Lighting control systems (e.g., dimmers)
• Motor speed control in power tools and kitchen appliances
• Temperature regulation systems for heating elements
• Small home appliances and fans
• Industrial process control equipment

Designed with reliability and versatility in mind, the NXP BT139-800E triac is a go-to component for designers and engineers looking to create efficient, compact, and cost-effective AC power control circuits. Its high voltage and current handling capabilities, combined with its sensitive gate, make it a powerful element in the world of power electronics.
