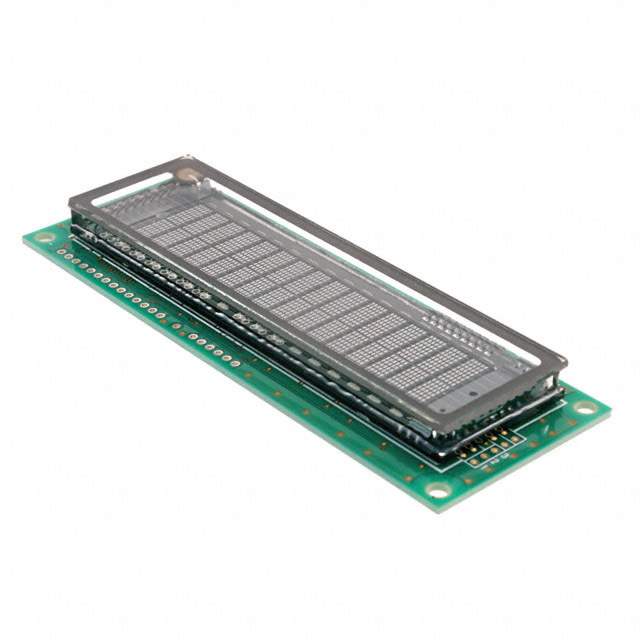

CU16029-UW1J Real Image
Same model may have multiple batches, images only for reference.

CU16029-UW1J

Part No CU16029-UW1J
Manufacturer Noritake Company Inc.
Catalog Display Modules - Vacuum Fluorescent (VFD)
Description VFD CHARACTER 16X2 8MM / Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V Parallel/Serial 122.00mm x 44.00mm x 10.70mm
Datasheet
CU16029-UW1J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Vacuum Fluorescent (VFD)
Mfr Noritake Company Inc.
Series CU-U
Package Tray
Outline L x W x H 122.00mm x 44.00mm x 10.70mm
Viewing Area 82.70mm L x 19.00mm W
Display Format 16 x 2
Display Type Character
Format 5 x 7 Dots
Voltage - Supply 5V
Character Size 8.00mm H x 3.85mm W
Interface Parallel/Serial
Temperature Range - Operating -40°C ~ 85°C
Base Product Number CU16029
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9005
Win Source Part Number 1336942-CU16029-UW1J
Ultra Librarian 3D Model Ultra Librarian CU16029-UW1J CAD Model

Description

The CU16029-UW1J is a vacuum fluorescent display from the CU-U series that is designed for use in various electronic applications.

  • Series: CU-U
  • Display Format: 16 x 2
  • Character Size: 8.00mm H x 3.85mm W
  • Interface: parallel/serial
  • Viewing Area: 82.70mm L x 19.00mm W
  • Package: tray
  • Size: 122.00mm x 44.00mm x 10.70mm
  • Voltage Supply: 5V
  • Operating Temperature: -40°C to 85°C
