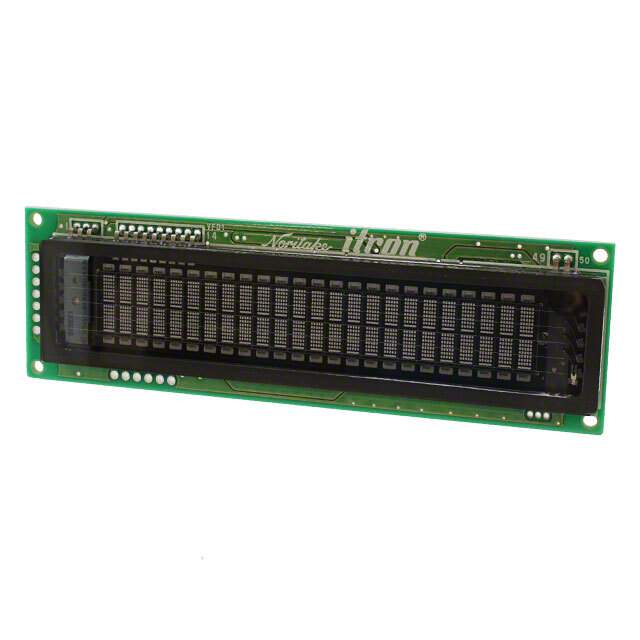

CU24025-UW1J Real Image
Same model may have multiple batches, images only for reference.

CU24025-UW1J

Part No CU24025-UW1J
Manufacturer Noritake Company Inc.
Catalog Display Modules - Vacuum Fluorescent (VFD)
Description MODULE VF DISPLAY 24X2 5MM CHAR / Vacuum Fluorescent Display (VFD) 24 x 2 Character 5V Parallel/Serial 118.00mm x 36.00mm x 11.00mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Vacuum Fluorescent (VFD)
Mfr Noritake Company Inc.
Series CU-U
Package Tray
Outline L x W x H 118.00mm x 36.00mm x 11.00mm
Viewing Area 85.20mm L x 11.50mm W
Display Format 24 x 2
Display Type Character
Format 5 x 7 Dots
Voltage - Supply 5V
Character Size 4.70mm H x 2.40mm W
Interface Parallel/Serial
Temperature Range - Operating -40°C ~ 85°C
Base Product Number CU24025
Standard Package 12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9005
Win Source Part Number 1338503-CU24025-UW1J
Ultra Librarian 3D Model Ultra Librarian CU24025-UW1J CAD Model

Description

The CU24025-UW1J from Noritake is a vacuum fluorescent display (VFD) that features a parallel/serial interface and a 24 x 2 display format.

  • Interface: Parallel/Serial
  • Display Format: 24 x 2
  • Character Size: 4.70mm H x 2.40mm W
  • Viewing Area: 85.20mm L x 11.50mm W
  • Display Format: 5 x 7 dots
  • Outline Dimensions: 118.00mm x 36.00mm x 11.00mm
  • Voltage Supply: 5V
  • Temperature Range: -40°C to 85°C
