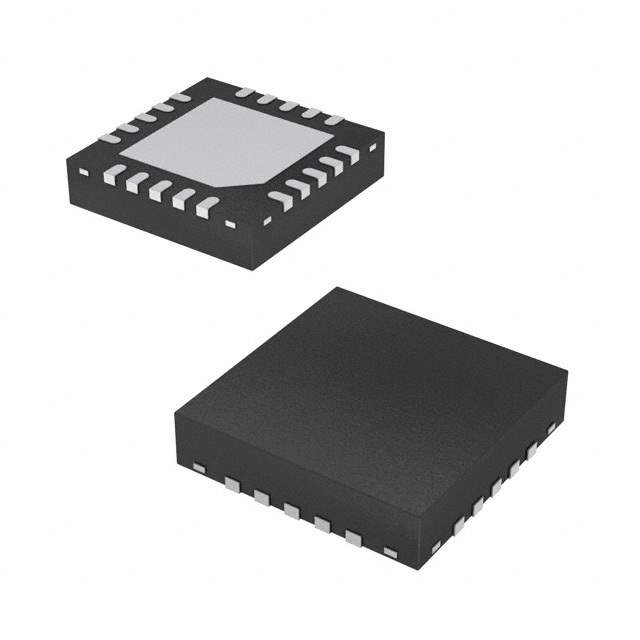

NRF24L01P-R7 Real Image
Same model may have multiple batches, images only for reference.

NRF24L01P-R7

Part No NRF24L01P-R7
Manufacturer Nordic Semiconductors
Catalog RF Receivers
Description IC RF TXRX ISM>1GHZ 20VFQFN / IC RF TxRx Only General ISM > 1GHz 2.4GHz 20-VFQFN Exposed Pad
Datasheet
NRF24L01P-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Package Tape & Reel
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 0dBm
Sensitivity -94dBm
Serial Interfaces SPI
Voltage - Supply 1.9V ~ 3.6V
Current - Receiving 12.6mA ~ 13.5mA
Current - Transmitting 7mA ~ 11.3mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 20-VFQFN Exposed Pad
Supplier Device Package 20-QFN (4x4)
Base Product Number NRF24
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1490-1033-6,1490-1033-1,1490-1033-2
Standard Package 1,500
Win Source Part Number 1082686-NRF24L01P-R7
Ultra Librarian 3D Model Ultra Librarian NRF24L01P-R7 CAD Model

Description

The Nordic Semiconductor ASA electronic component is an RF transceiver IC that operates at a frequency of 2.4GHz.

  • Data Rate: 2Mbps
  • Power Output: 0dBm
  • Sensitivity: -94dBm
  • Current Receiving: 12.6mA to 13.5mA
  • Current Transmitting: 7mA to 11.3mA
  • Voltage Supply: 1.9V to 3.6V
  • Package: Tape and reel package of 1,500
