Same model may have multiple batches, images only for reference.

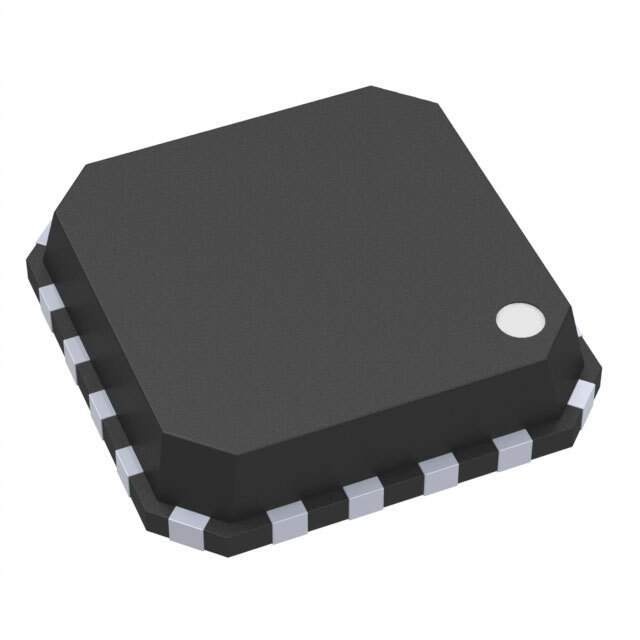

NRF2402G-REEL7 Real Image
Same model may have multiple batches, images only for reference.

NRF2402G-REEL7

Part No NRF2402G-REEL7
Manufacturer Nordic Semiconductors
Catalog RF Transmitters
Description IC TRANSMITTER 1MB SHOCK 16QFN / RF Transmitter GFSK 3V Automotive 16-Pin QFN EP T/R
Datasheet
NRF2402G-REEL7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Nordic Semiconductor ASA
Packaging Reel package
Frequency 2.4GHz
Applications Home Automation, Remote Sensing, RKE
Modulation or Protocol GFSK
Data Rate (Maximum) 1Mbps
Power - Output 0dBm
Current - Transmitting 11.5mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Operating Supply Voltage 1.9 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C
Package 16-VQFN Exposed Pad
Win Source Part Number 790784-NRF2402G-REEL7
Popularity Medium
Supply and Demand Status Limited
Family Name NRF2402G
Introduction Date November 11, 2002
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian NRF2402G-REEL7 CAD Model

Description

This electronic component is an RF/IF and RFID product from Nordic Semiconductor ASA.

  • Win Source Part Number: 790784-NRF2402G-REEL7
  • Package: Reel
  • Operating Temperature Range: -40°C to 85°C
  • Package: 16-VQFN Exposed Pad
  • Applications: Home Automation, Remote Sensing, RKE
  • Frequency: 2.4GHz
  • Operating Supply Voltage: 1.9V to 3.6V
  • Power Output: 0dBm
  • Data Interface: PCB Surface Mount
  • Modulation/Protocol: GFSK
  • Antenna Connector: PCB Surface Mount
  • Current Transmitting: 11.5mA
  • Data Rate (Maximum): 1Mbps
  • Popularity: Medium
  • Supply and Demand Status: Limited
