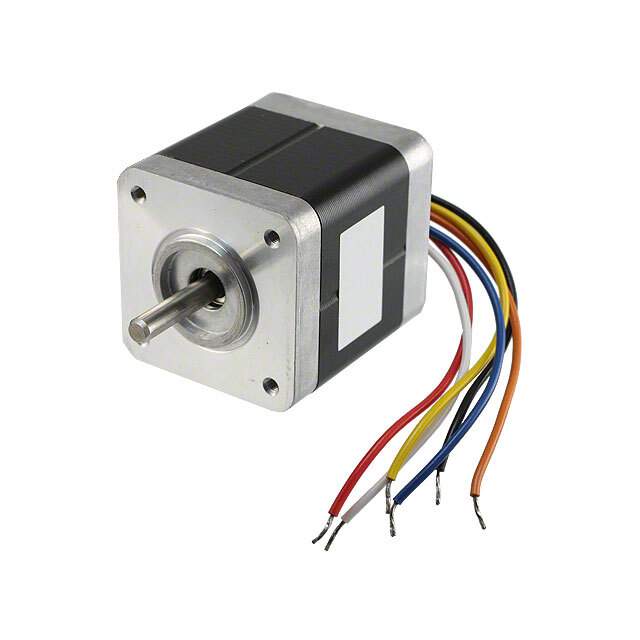

17PM-K444-00VS Real Image
Same model may have multiple batches, images only for reference.

17PM-K444-00VS

Part No 17PM-K444-00VS
Manufacturer NMB Technologies Corporation
Catalog Stepper Motors
Description STEP MOTOR HYBRID UNIPOLAR 24V / Stepper Motors Hybrid Rectangular 1.2A 3.3Ohm 0.34N.m 1.8° 2Shaft
Datasheet
17PM-K444-00VS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Motors, Solenoids, Driver Boards/Modules
Manufacturer NMB Technologies Corporation
Series 17PM
Type Hybrid
Coil Type Unipolar
Voltage Rating DC 24VDC
Current Rating 1.2A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 48.15 / 340
Dimension Square - 1.650" x 1.650" (42.00mm x 42.00mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.984" (25.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature Range -10°C ~ 50°C
Coil Resistance 3.3 Ohms
Features Flatted Shaft
Rotor Inertia 75gcm2
Weight 0.772 lb (350.17g)
Win Source Part Number 792431-17PM-K444-00VS
Popularity Medium
Supply and Demand Status Limited
Family Name 17PM-K
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 17PM-K444-00VS CAD Model

Description

The 792431-17PM-K444-00VS hybrid motor is manufactured by NMB Technologies Corporation.

  • Series: 17PM
  • Shaft Diameter: 0.197 inches (5.00mm)
  • Shaft Length: 0.984 inches (25.00mm)
  • Current Rating: 1.2A
  • Coil Resistance: 3.3 Ohms
  • Accuracy: ±5 percent
  • Torque Holding: 48.15/340 oz-in/mNm
  • Dimension: Square - 1.650 inches x 1.650 inches (42.00mm x 42.00mm)
