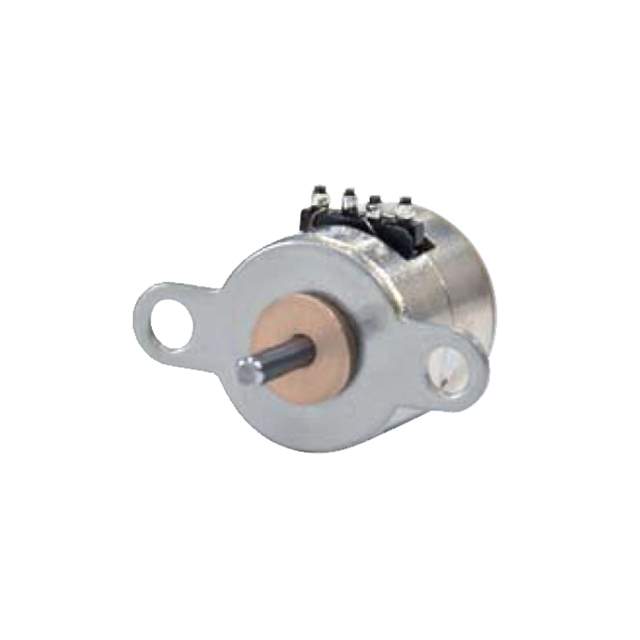

SMC10-F20-HHD9 Real Image
Same model may have multiple batches, images only for reference.

SMC10-F20-HHD9

Part No SMC10-F20-HHD9
Manufacturer NMB Technologies Corporation
Catalog Stepper Motors
Description STEPPER MOTOR PM BIPOLAR 5V / Bipolar Stepper Motor Permanent Magnet Frame Size 20.0 Step 5VDC
Datasheet
SMC10-F20-HHD9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Motors, Actuators, Solenoids and Drivers - Stepper Motors
Mfr NMB Technologies Corporation
Package Bulk
Product Status Active
Type Permanent Magnet
Coil Type Bipolar
Voltage - Rated 5VDC
Steps per Revolution 20
Step Angle 18°
Size / Dimension Round - 0.394" Dia (10.00mm)
Diameter - Shaft 0.059" (1.50mm)
Length - Shaft and Bearing 0.197" (5.00mm)
Mounting Hole Spacing 0.551" (14.00mm)
Termination Style Through Hole
Temperature Range - Operating -10°C ~ 50°C
Coil Resistance 21.5 Ohms
Features Round Shaft
Base Product Number SMC10
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8501.10.4060
Win Source Part Number 895867-SMC10-F20-HHD9
Ultra Librarian 3D Model Ultra Librarian SMC10-F20-HHD9 CAD Model

Description

The SMC10-F20-HHD9 is a high-quality stepper motor designed for precise motion control applications manufactured by NMB Technologies Corporation.

  • Shaft Design: round shaft design
  • Diameter: 0.394" (10.00mm)
  • Rated Voltage: 5VDC
  • Coil Resistance: 21.5 Ohms
  • Step Angle: 18°
  • Step per Revolution: 20
  • Termination: through-hole
  • Temperature Range: -10°C to 50°C
  • Packaging: bulk packaging
  • Package Size: 100 pcs
