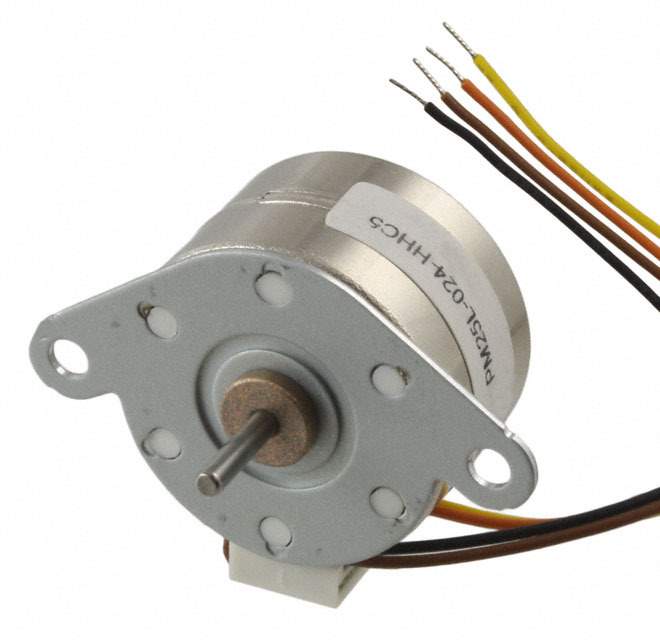

PM25L-024-HHC5 Real Image
Same model may have multiple batches, images only for reference.

PM25L-024-HHC5

Part No PM25L-024-HHC5
Manufacturer NMB Technologies Corporation
Catalog Stepper Motors
Description STEPPER MOTOR PM BIPOLAR 24V / Bipolar Stepper Motor Permanent Magnet Frame Size 24 Step 600 mA 24VDC
Datasheet
PM25L-024-HHC5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Motors, Solenoids, Driver Boards/Modules>Stepper Motors
Mfr NMB Technologies Corporation
Series PM
Package Bulk
Type Permanent Magnet
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 600 mA
Steps per Revolution 24
Step Angle 15°
Torque - Holding (oz-in / mNm) 3.7 / 26
Dimension Round - 0.984" Dia (25.00mm)
Diameter - Shaft 0.079" (2.00mm)
Length - Shaft and Bearing 0.394" (10.00mm)
Mounting Hole Spacing 1.260" (32.00mm)
Termination Style Wire Leads
Coil Resistance 8 Ohms
Features Round Shaft
Base Product Number PM25L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8501.10.4040
Other Names P14339,PM25L024HHC5
Standard Package 20
Win Source Part Number 1109698-PM25L-024-HHC5
Ultra Librarian 3D Model Ultra Librarian PM25L-024-HHC5 CAD Model

Description

The 1109698-PM25L-024-HHC5 electronic component is a stepper motor manufactured by NMB Technologies Corporation.

  • Series: PM
  • Package: Bulk
  • Standard Package: 20
  • Voltage Rating: 24VDC
  • Current Rating: 600mA
  • Coil Resistance: 8 Ohms
  • Torque Holding: 3.7/26 oz-in/mNm
  • Diameter of Shaft: 0.079 inches (2.00mm)
  • Length of Shaft and Bearing: 0.394 inches (10.00mm)
