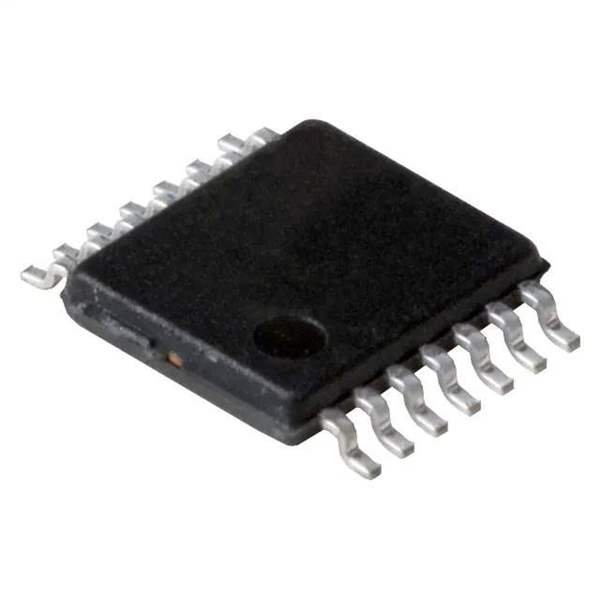

Same model may have multiple batches, images only for reference.

NJM2734V-TE1

Name: NJM2734V-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: 254685
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NJM2734V-TE1
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description	IC OPAMP GP 4 CIRCUIT 14SSOP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr	Nisshinbo Micro Devices Inc.
Package	Tape & Reel
Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	0.4V/µs
Gain Bandwidth Product	1 MHz
Current - Input Bias	50 nA
Voltage - Input Offset	1 mV
Current - Supply	1mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	6 V
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	14-LSSOP (0.173", 4.40mm Width)
Supplier Device Package	14-SSOP
Base Product Number	NJM2734
Standard Package	2,000 pcs
ECCN	EAR99
HTSUS	8542.33.0001
Win Source Part Number	254685-NJM2734V-TE1
Ultra Librarian 3D Model	Ultra Librarian NJM2734V-TE1 CAD Model

Alternative Products

Description

The NJM2734V-TE1 is a quad general-purpose amplifier IC that is widely used in instrumentation, OP amps, and buffer amp applications.

Gain Bandwidth Product: 1MHz
Slew Rate: 0.4V/μs
Input Bias Current: 50nA
Input Offset Voltage: 1mV
Supply Current: 1mA
Voltage Supply: 1.8V to 6V
Package: compact 14-LSSOP package
Operating Temperature Range: -40°C to 85°C
Status: active product from Nisshinbo Micro Devices Inc.
Benefit: an excellent choice for general-purpose amplification applications
