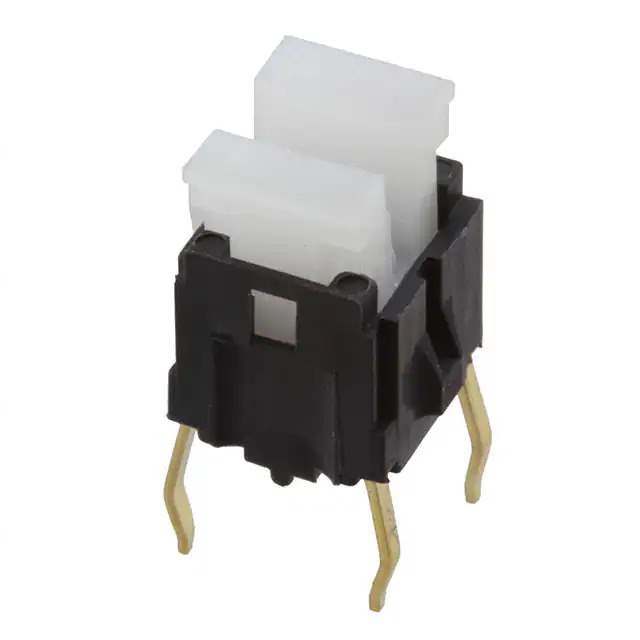

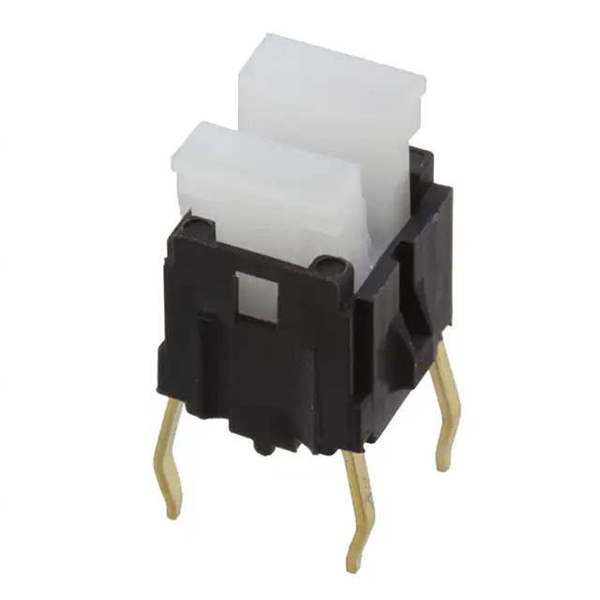

TR1-01 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Nidec Copal Electronics
Series TR
Package Tube
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 12 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 70°C
Electrical Life 100,000 Cycles
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 937523-TR1-01
Ultra Librarian 3D Model Ultra Librarian TR1-01 CAD Model

Description

The TR Pushbutton Switch is a high-quality electronic component designed for various applications.

  • Series: TR series
  • Termination Style: PC pin
  • Voltage Rating: 12V
  • Circuit Configuration: SPST-NO
  • Actuator Type: Plunger for cap
  • Mechanical Life: 100,000 cycles
