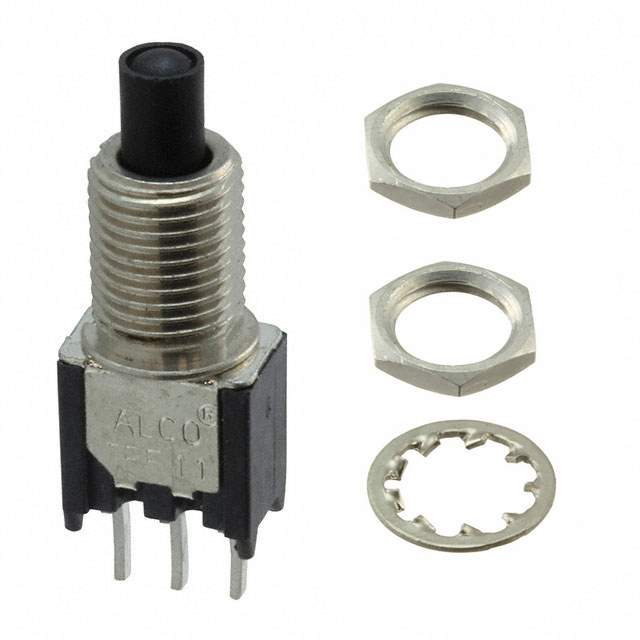

1825100-7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series TP
Package Bulk
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 100,000 Cycles
Base Product Number 1825100
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-2423,2266-1825100-7,1825100-7-ND,TPF11FGPC004,Q13086885
Standard Package 25
Win Source Part Number 1216617-1825100-7
Ultra Librarian 3D Model Ultra Librarian 1825100-7 CAD Model

Description

The TP series pushbutton switch is a standard type switch with a SPDT circuit and an on-mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 20 V AC and 20 V DC
  • Current Rating: 0.4VA (AC/DC)
  • Panel Cutout Dimension: Circular - 6.35mm Dia
  • Packaging: Bulk
  • Actuator/Cap Color: Black
  • Applications: Automotive, consumer electronics, and industrial
