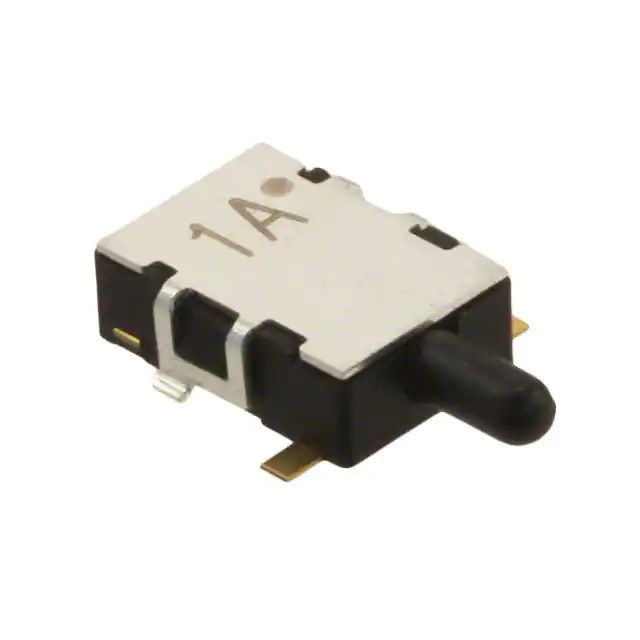

CL-DA-1BB4-A2T Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-DA-1BB4-A2T

Part No CL-DA-1BB4-A2T
Manufacturer Nidec Copal Electronics
Catalog Snap Action, Limit Switches
Description SWITCH DETECT SPST-NC 100MA 12V
Datasheet
CL-DA-1BB4-A2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Nidec Components Corporation
Series CL-DA
Package Tape & Reel (TR)
Product Status Active
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Overtravel Plunger
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Ingress Protection -
Features -
Operating Force 76gf
Release Force -
Operating Position 0.134" (3.4mm)
Pretravel 0.014" (0.35mm)
Differential Travel -
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life -
Base Product Number CL-DA-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1376142-CL-DA-1BB4-A2T
Ultra Librarian 3D Model Ultra Librarian CL-DA-1BB4-A2T CAD Model

Description

The Nidec Components Corporation CL-DA-1BB4-A2T is a surface mount limit switch with a SPST-NC circuit configuration.

  • Voltage Rating: 12V DC
  • Current Rating: 100mA
  • Switch Function: On-Mom
  • Actuator Type: Overtravel Plunger
  • Mechanical Life: 50,000 Cycles
  • Operating Force: 76gf
  • Temperature Range: -40°C to 85°C
  • Packaging: Tape and Reel
