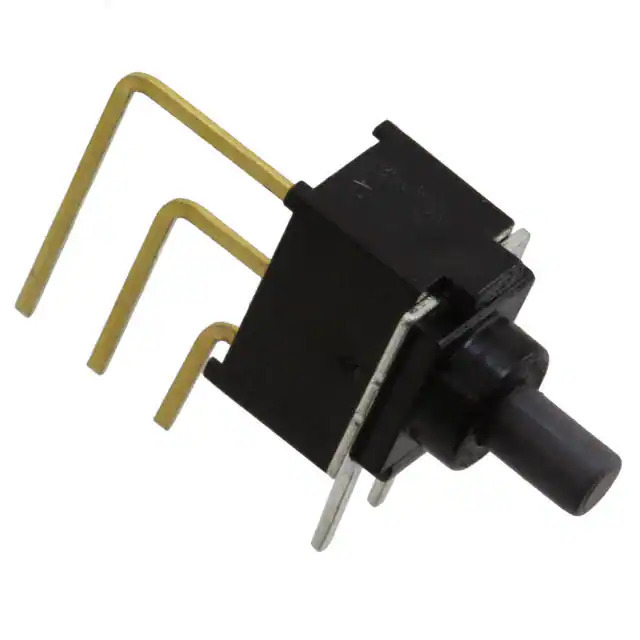

CFP2-1FC6-AW Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CFP2-1FC6-AW

Part No CFP2-1FC6-AW
Manufacturer Nidec Copal Electronics
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 0.4VA 28V
Datasheet
CFP2-1FC6-AW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Nidec Components Corporation
Series CFP2
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle, Vertical
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Washable
Panel Cutout Dimensions -
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number CFP2-1FC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376042-CFP2-1FC6-AW
Ultra Librarian 3D Model Ultra Librarian CFP2-1FC6-AW CAD Model

Description

The CFP2-1FC6-AW is a washable pushbutton switch from Nidec Components Corporation.

  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V AC/DC
  • Circuit: SPDT
  • Switch Function: On-Momentary
  • Actuator Type: Plunger for a Cap
  • Mounting: Through-Hole, Right Angle, Vertical
  • Mechanical Life: 30,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Temperature Range: -40°C to 85°C
  • Series: CFP2
  • Packaging: Tray
  • Status: Active
