Same model may have multiple batches, images only for reference.

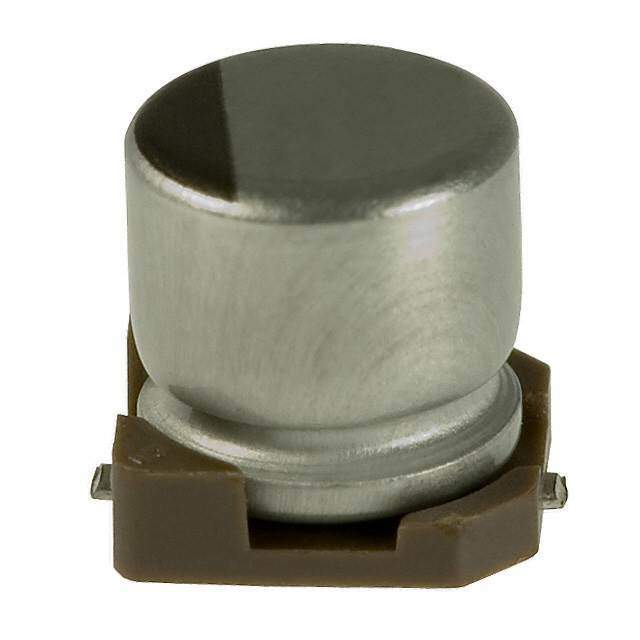

UWX1C220MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1C220MCL1GB

Part No UWX1C220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 37 mA @ 120 Hz
Ripple Current @ High Frequency 55.5 mA @ 10 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2101-2,493-2101-1,493-2101-6
Standard Package 1,000
Win Source Part Number 994821-UWX1C220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1C220MCL1GB CAD Model

Description

The Nichicon aluminum electrolytic capacitor is a high-quality component for electronic devices.

  • Series: UWX
  • Manufacturer: Nichicon
  • Capacitance: 22 µF
  • Tolerance: ±20 percent
  • Rated Voltage: 16 V
  • Mounting: SMD (SMT)
  • Package: Radial, Can - SMD
  • Application: General Purpose
  • Height: 0.213 inches (5.40mm)
  • Lifetime: 2000 hours @ 85°C
  • Polarized: Yes
  • Surface Mount Land Size: 0.209 inches x 0.209 inches (5.30mm x 5.30mm)
  • Popularity: Low
  • For New Designs: No
