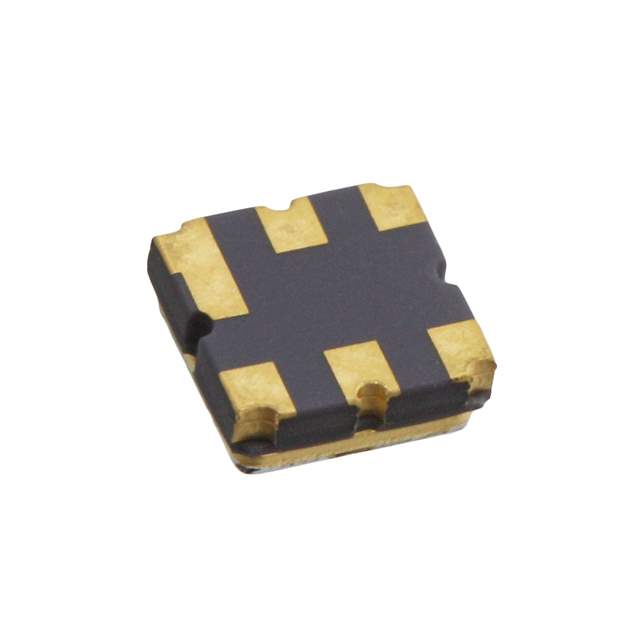

The B39861-B4161-U410 is a SAW (Surface Acoustic Wave) filter manufactured by EPCOS (TDK). SAW filters are widely used in radio frequency (RF) applications to selectively pass or reject signals within a specific frequency range. This particular filter is designed for use in communication systems, offering precise filtering characteristics.

Applications

• Mobile communication systems (e.g., cellular base stations)
• Wireless communication devices
• RF front-end modules
• Satellite communication systems
• Radio receivers and transmitters

Features

• High selectivity: Provides excellent rejection of unwanted signals, minimizing interference.
• Low insertion loss: Ensures minimal signal attenuation within the passband, maximizing signal strength.
• Small size: Allows for compact integration into RF modules and devices.
• Stable performance: Offers reliable operation over a wide temperature range.
• Surface mountable device (SMD): Facilitates automated assembly and high-volume production.

Benefits

• Improved signal quality: By filtering out noise and interference, the B39861-B4161-U410 enhances the overall signal quality in communication systems.
• Increased system performance: The low insertion loss and high selectivity contribute to improved system performance and reliability.
• Reduced size and weight: The small size of the filter enables the development of more compact and lightweight communication devices.
• Cost-effective solution: SAW filters offer a cost-effective filtering solution for a wide range of RF applications.
• Enhanced reliability: Stable performance over temperature ensures reliable operation in demanding environments.

Additional Details

Specific technical specifications, such as the center frequency, bandwidth, insertion loss, and rejection characteristics, are crucial for selecting the appropriate SAW filter for a given application. The B39861-B4161-U410 is typically fabricated using piezoelectric materials, such as lithium tantalate (LiTaO3) or lithium niobate (LiNbO3), which exhibit excellent acoustic properties. The filter's performance is determined by the design of the interdigital transducers (IDTs) patterned on the piezoelectric substrate. These IDTs generate and detect surface acoustic waves, which are then used to filter the RF signal. Consult the datasheet for detailed electrical characteristics.
