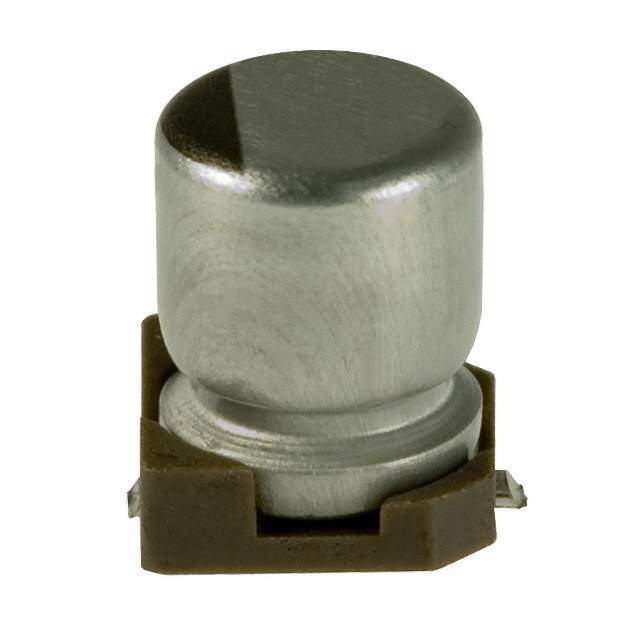

UWX1C100MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1C100MCL1GB

Part No UWX1C100MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD
Datasheet
UWX1C100MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Status Active
Capacitance 10μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 23mA @ 120Hz
Ripple Current - High Frequency 34.5mA @ 10kHz
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1116787-UWX1C100MCL1GB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UWX1C100MCL1GB CAD Model

Description

The Nichicon UWX1C100MCL1GB is a 10μF polarized capacitor with a voltage rating of 16V and a tolerance of ±20%.

  • Capacitance: 10μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height: 0.213" (5.40mm)
  • Packaging: reel-TR package
  • Category: capacitors
  • Ripple Current @ 120Hz: 23mA
  • Ripple Current @ 10kHz: 34.5mA
  • Lifetime: 2000 Hrs @ 85℃
  • Status: active
  • Popularity: medium
