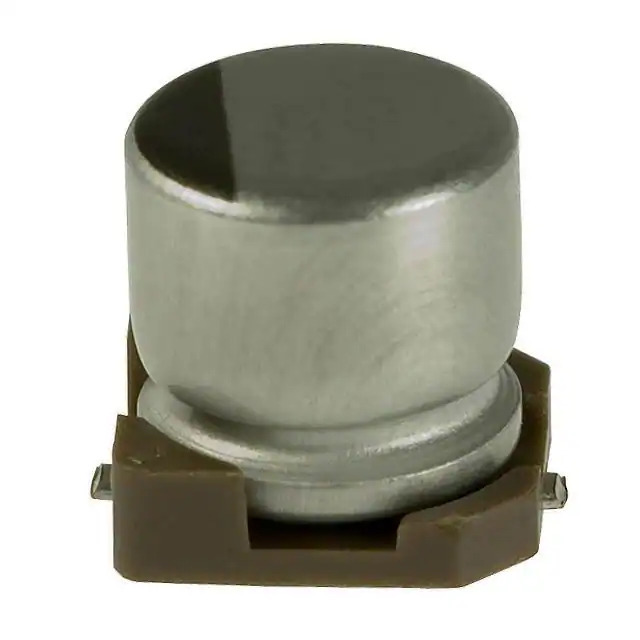

Same model may have multiple batches, images only for reference.

UWT1H4R7MCL1GB

Name: UWT1H4R7MCL1GB
Brand: Nichicon
SKU: 1360200
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1H4R7MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 50V SMD / 4.7 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Product Status	Active
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	19 mA @ 120 Hz
Ripple Current @ High Frequency	28.5 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360200-UWT1H4R7MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWT1H4R7MCL1GB CAD Model

Alternative Products

Description

The UWT1H4R7MCL1GB is a radial, can-type aluminum electrolytic capacitor from Nichicon's UWT series.

Capacitance: 4.7 µF
Tolerance: ±20%
Voltage Rating: 50 V
Ripple Current @ Low Frequency: 19 mA @ 120 Hz
Ripple Current @ High Frequency: 28.5 mA @ 10 kHz
Size / Dimension: 0.197" Dia (5.00mm)
Height - Seated (Max): 0.213" (5.40mm)
Application: General Purpose
Lifetime @ Temp.: 1,000 Hrs @ 105°C
Polarization: Polar
Mounting Type: Surface Mount
REACH Status: Unaffected
ECCN: EAR99
