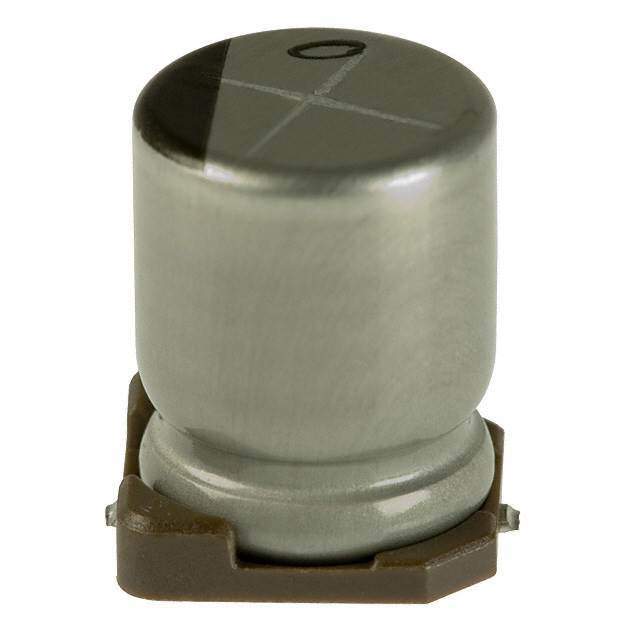

Same model may have multiple batches, images only for reference.

UWT1E331MNL1GS

Name: UWT1E331MNL1GS
Brand: Nichicon
SKU: 1307335
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1E331MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	190 mA @ 120 Hz
Ripple Current @ High Frequency	285 mA @ 10 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Other Names	Q5741112BA,493-2193-2,493-2193-1,493-2193-6
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307335-UWT1E331MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UWT1E331MNL1GS CAD Model

Description

The UWT series aluminum electrolytic capacitor is a general-purpose component designed for use in electronic devices.

Series: UWT
Capacitance: 330 µF
Voltage Rating: 25 V
Tolerance: ±20%
ESR: Not Specified
Polarized: Yes
Package: Radial, Can - SMD
Height: 0.394" (10.00mm)
Diameter: 0.315" (8.00mm)
Temperature Range: -55°C to 105°C
Lifetime: 1000 Hrs @ 105°C
Manufacturer: Nichicon
Standard Package: 500
