Same model may have multiple batches, images only for reference.

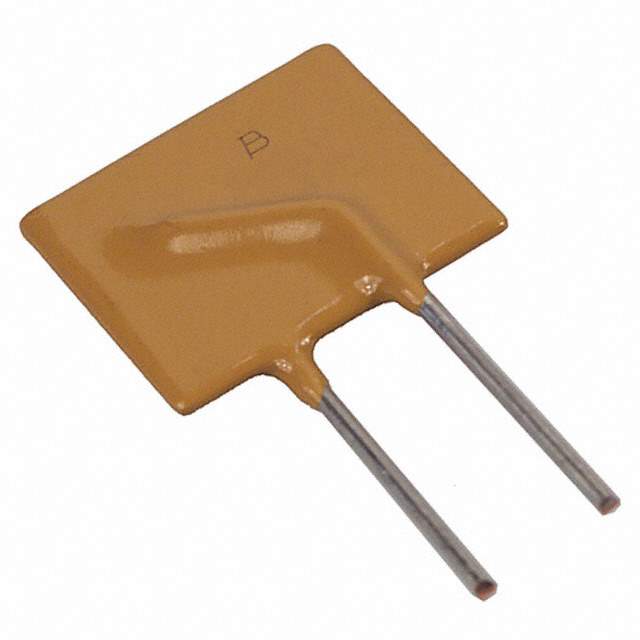

MF-R700 Real Image
Same model may have multiple batches, images only for reference.

MF-R700

Part No MF-R700
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 7A HOLD
Datasheet
MF-R700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 7A
Current - Trip (It) 14A
Time to Trip 17.5s
Resistance - Initial (Ri) (Min) 5 mOhm
Resistance - Post Trip (R1) (Max) 30 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.870" L x 0.118" W (22.10mm x 3.00mm)
Height - Seated (Max) 1.173" (29.80mm)
Lead Spacing 0.402" (10.20mm)
Approvals cURus, TUV
Win Source Part Number 003425-MF-R700
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R700 CAD Model

Description

The Bourns Inc. Polymeric Fuse is an excellent circuit protection device that is designed to protect electronic circuits from overcurrent and overvoltage.

  • Maximum Voltage Rating: 30V
  • Maximum Current Rating: 40A
  • Popularity Rating: Medium
  • Supply and Demand: Balance
