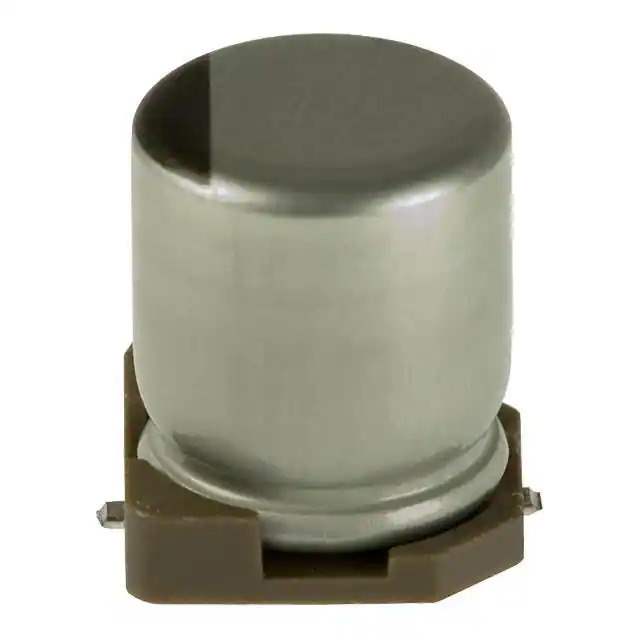

Same model may have multiple batches, images only for reference.

UWT1C221MCL1GS

Name: UWT1C221MCL1GS
Brand: Nichicon
SKU: 845153
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1C221MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	157.5 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	900 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	845153-UWT1C221MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UWT1C221MCL1GS CAD Model

Description

The UWT series Aluminum Electrolytic Capacitor is a high-quality electronic component designed for general-purpose applications and is manufactured by Nichicon.

Capacitance: 220μF
Voltage Rating: 16V
Package: Tape and Reel
Size: 0.248" diameter (6.30mm)
Height (Seated): 0.303" (7.70mm)
Tolerance: ±20%
Lifetime: 1000 hours @ 105°C
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Product Status: Active
