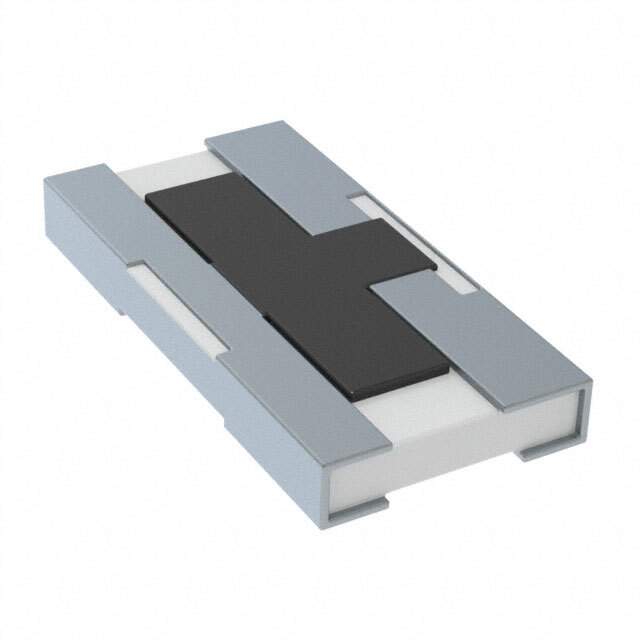

The PAT1632-C-6DB is a precision thin film chip attenuator manufactured by Susumu. This attenuator is designed for high-frequency applications requiring a 6dB attenuation level. It offers excellent return loss and stable performance over temperature, making it suitable for various RF and microwave circuit applications. Its small size and robust construction are beneficial for densely populated circuit boards.

Applications:

• RF Amplifiers: Used to control gain and optimize performance in amplifier circuits.
• Wireless communication systems: Found in mobile devices and base stations for signal level adjustment.
• Receiver Front-Ends: Protects sensitive receiver components from strong input signals.
• Test and Measurement Equipment: Used in signal generators, spectrum analyzers, and network analyzers for accurate signal control.
• Mixers and Frequency Converters: Provides impedance matching and signal level control.

Features:

• Precise 6dB Attenuation: Offers an accurate and consistent 6dB attenuation value.
• Thin Film Technology: Provides excellent stability, low temperature coefficient, and high reliability.
• Compact 1632 Chip Size: Suitable for high-density circuit board designs.
• High-Frequency Performance: Operates effectively across a wide range of frequencies.
• RoHS Compliant: Meets environmental regulations for hazardous substances.

Benefits:

• Accurate Signal Control: Ensures precise signal levels, improving circuit performance.
• Stable and Reliable: Consistent performance over temperature variations and long-term operation.
• Miniaturization: Small size allows for compact designs and increased circuit density.
• Optimized RF Performance: Reduces signal reflections and improves impedance matching.
• Easy Integration: Surface mount design simplifies assembly and soldering processes.

Additional Details:

The PAT1632-C-6DB attenuator employs thin film resistor technology, which offers excellent precision and stability. The resistive element is precisely patterned to achieve the desired attenuation value with minimal parasitic effects. The ceramic substrate provides good thermal conductivity and electrical insulation. Typical specifications include an impedance of 50 ohms, a specified power rating, and an operating temperature range. Detailed S-parameter data are available from Susumu for accurate circuit simulation and design purposes.
