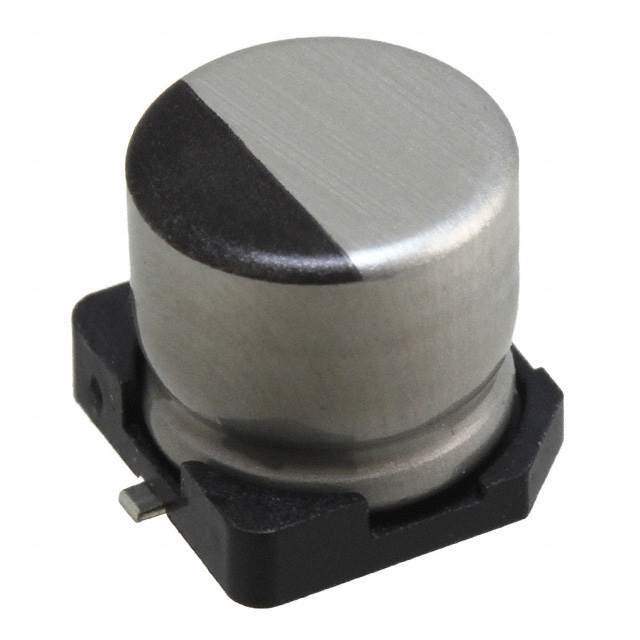

UWD1E330MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1E330MCL1GS

Part No UWD1E330MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 25V SMD / 33 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1E330MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 440 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-9669-1,493-9669-2,UWD1E330MCL1GS-ND,493-9669-6
Standard Package 1,000
Win Source Part Number 1038186-UWD1E330MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1E330MCL1GS CAD Model

Description

The UWD series aluminum electrolytic capacitors from Nichicon are designed for general purpose applications.

  • Manufacturer: Nichicon
  • Series: UWD
  • Application: General Purpose
  • Capacitance: 33 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 440 mOhms
  • Polarization: Polarized
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Part Number: UWD1E330MCL1GS
  • Height: 0.228" (5.80mm)
  • Diameter: 0.248" (6.30mm)
  • Package/Case: Radial, Can - SMD
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Alternative: UWD1V330MCL1GS, 25TZV33M6.3X6.1, UWD1C330MCL1GS, UCM1E330MCL1GS, EEE-HD1V330AP, and EEE-HD1H330P
  • Compliance: EAR99
