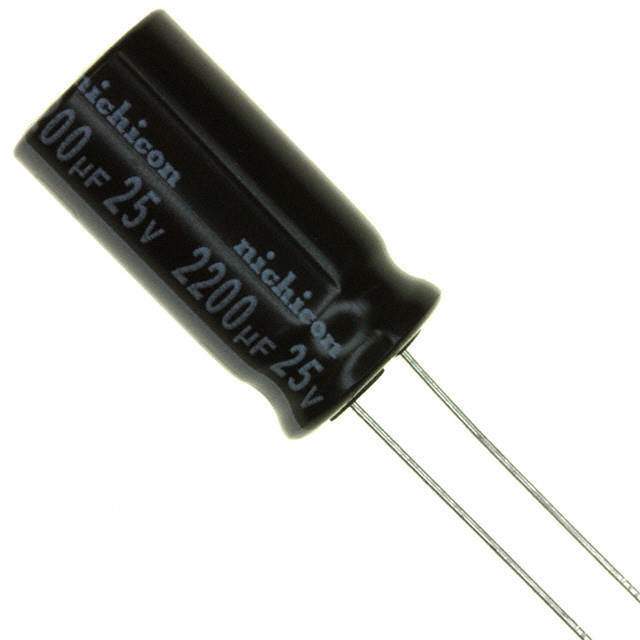

UVZ1E222MHD Real Image
Same model may have multiple batches, images only for reference.

UVZ1E222MHD

Part No UVZ1E222MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V RADIAL / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.09 A @ 120 Hz
Ripple Current @ High Frequency 1.2535 A @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number Q4012917,493-1306
Standard Package 800
Win Source Part Number 1328786-UVZ1E222MHD
Ultra Librarian 3D Model Ultra Librarian UVZ1E222MHD CAD Model

Description

The Nichicon 1328786-UVZ1E222MHD capacitor is an aluminum electrolytic capacitor that has a capacitance of 2200 µF and a voltage rating of 25 V.

  • Capacitance: 2200 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): not specified
  • Polarized: Yes
  • Ripple Current (Low Frequency): 1.09 A
  • Ripple Current (High Frequency): 1.2535 A
  • Lifetime: 1000 hours @ 105°C
  • Application: General Purpose
  • Package: Radial Can
  • Mounting Type: Through-Hole
  • Diameter: 0.492" (12.50mm)
  • Height: 1.063" (27.00mm)
  • ROHS3 Compliant: Yes
  • Lifecycle Status: Not for New Designs
