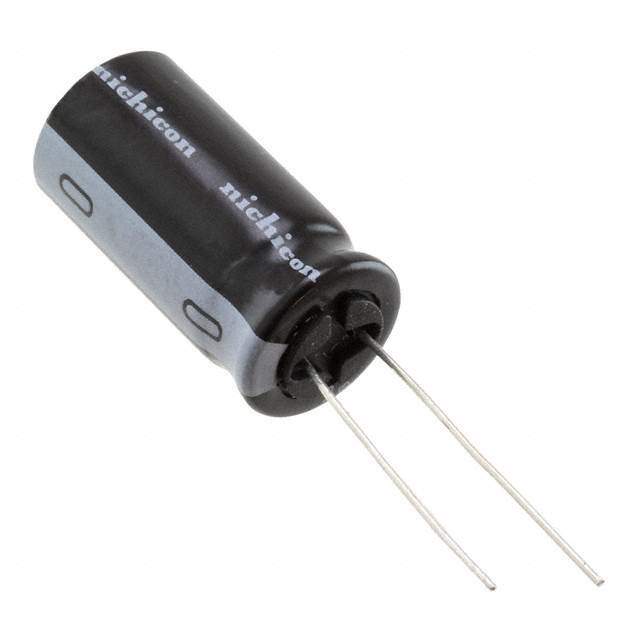

UVY2A331MHD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVY
Package Bulk
Product Status Not For New Designs
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 540 mA @ 120 Hz
Ripple Current @ High Frequency 810 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number UVY2A
Standard Package 800
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351105-UVY2A331MHD
Ultra Librarian 3D Model Ultra Librarian UVY2A331MHD CAD Model

Description

The Nichicon UVY2A331MHD capacitor is an aluminum electrolytic capacitor that is ideal for general-purpose applications.

  • Capacitance: 330 μF
  • Voltage Rating: 100 V
  • ESR: Not Specified
  • Polarization: Polarized
  • Package: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Package Type: Bulk
  • Size/Dimension: 0.492" Dia (12.50mm)
  • Height: 1.063" (27.00mm)
  • Lifetime: 2000 Hrs @ 105°C
