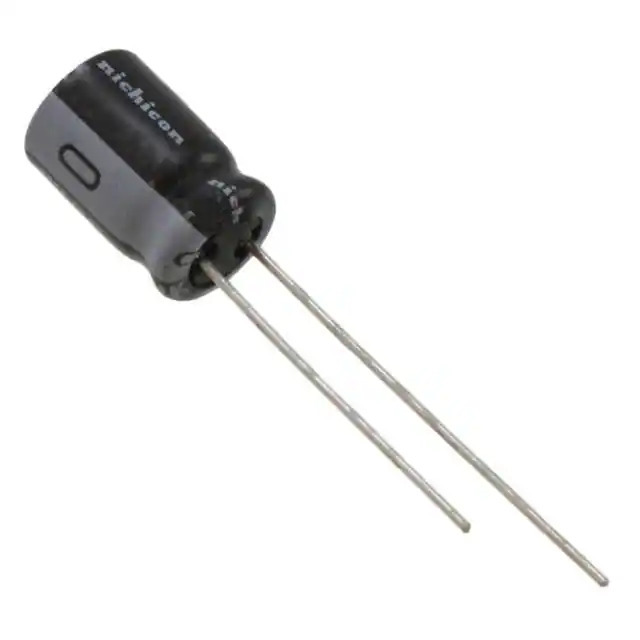

Same model may have multiple batches, images only for reference.
UVK1E331MPD1TD Nichicon
Same model may have multiple batches, images only for reference.

UVK1E331MPD1TD

Part No UVK1E331MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V RADIAL / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet
UVK1E331MPD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVK
Product Status Not For New Designs
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 390 mA @ 120 Hz
Ripple Current @ High Frequency 585 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358163-UVK1E331MPD1TD
Ultra Librarian 3D Model Ultra Librarian UVK1E331MPD1TD CAD Model

Description

The UVK1E331MPD1TD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UVK series.

  • Capacitance: 330 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 390 mA @ 120 Hz
  • Ripple Current (High Frequency): 585 mA @ 10 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size: 0.315" (8.00mm) diameter
  • Height: 0.512" (13.00mm)
  • Lifetime: 2000 hours @ 85°C
  • Polarized: Yes
  • Mounting: Through hole
  • REACH: Unaffected
  • ECCN: EAR99
  • Lifecycle: Not for new designs
