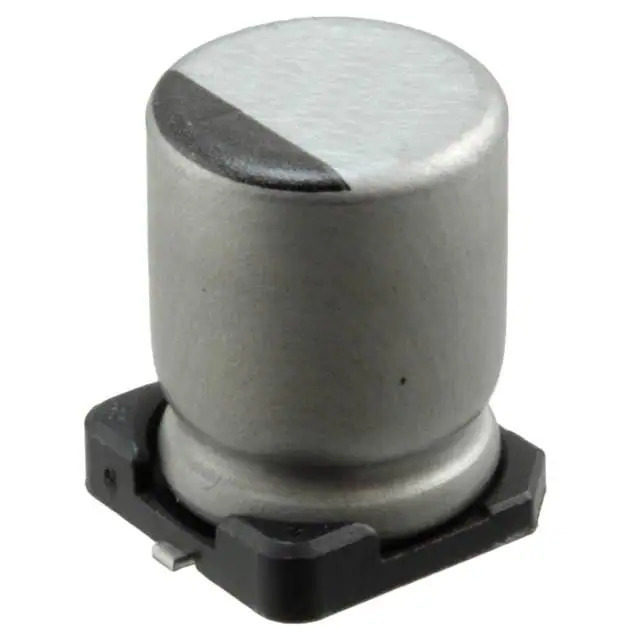

Same model may have multiple batches, images only for reference.

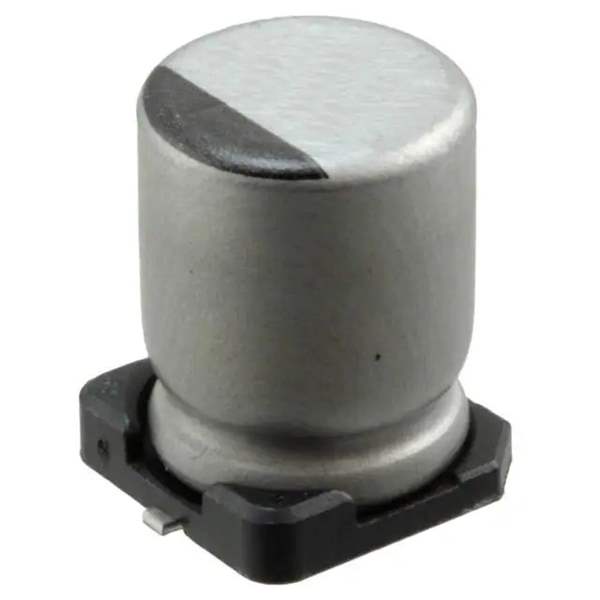

UUL1E101MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUL1E101MNL1GS

Part No UUL1E101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUL1E101MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUL
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 116 mA @ 120 Hz
Ripple Current @ High Frequency 174 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360396-UUL1E101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUL1E101MNL1GS CAD Model

Description

The 1360396-UUL1E101MNL1GS is a surface mount aluminum electrolytic capacitor from Nichicon.

  • Series: UUL
  • Package: Tape & Reel
  • Capacitance: 100 µF
  • Voltage Rating: 25 V
  • Operating Temperature: -40°C to 105°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 116 mA @ 120 Hz
  • Ripple Current (High Frequency): 174 mA @ 10 kHz
  • Size: 0.315" (8.00mm) in diameter
  • Height (Seated): 0.413" (10.50mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Lifetime: 5000 Hours @ 105°C
  • REACH Unaffected: Yes
