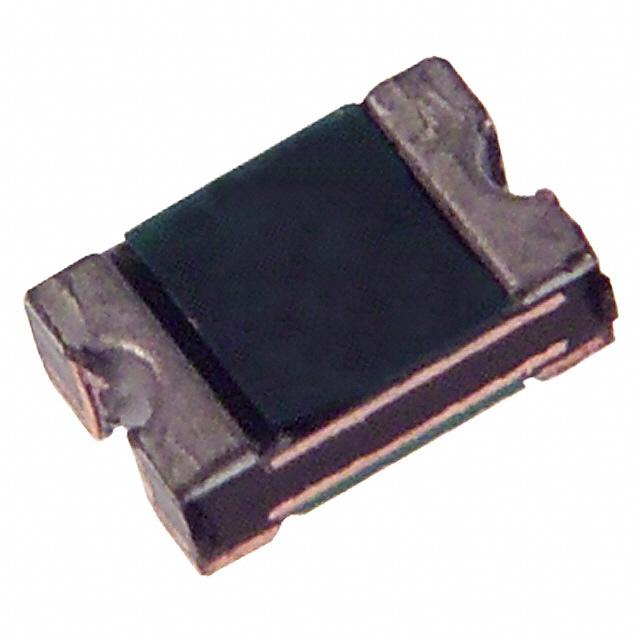

The SMD0805P015TF is a resettable fuse, specifically a PolySwitch PPTC (Polymeric Positive Temperature Coefficient) device, manufactured by Littelfuse. As a surface mount device, it is designed to protect electronic circuits from overcurrent conditions. When an overcurrent occurs, the PPTC element rapidly increases its resistance, limiting the current and preventing damage to downstream components. Once the fault condition is cleared and power is cycled, the device cools down and returns to its low-resistance state, allowing normal circuit operation to resume without the need for manual replacement.

Applications

• Portable Electronics: Protection in smartphones, tablets, and other handheld devices.
• USB Devices: Overcurrent protection for USB ports and connected devices.
• Rechargeable Battery Packs: Safeguarding battery packs from overcurrent and short-circuit conditions.
• Computer Peripherals: Protection for external hard drives, flash drives, and other peripherals.
• General Electronic Circuits: Overcurrent protection in a wide range of electronic circuits.

Features

• Surface Mount Device (SMD): Suitable for automated assembly processes.
• Resettable Fuse (PPTC): Provides automatic overcurrent protection with self-resetting capability.
• Compact 0805 Package: Space-saving design for high-density circuit boards.
• Fast Trip Time: Quick response to overcurrent events to minimize potential damage.
• Low Resistance: Maintains a low resistance during normal operation.

Benefits

• Reliable Circuit Protection: Provides robust overcurrent protection for electronic components.
• Reduced Downtime: Automatic reset minimizes downtime compared to traditional fuses.
• Lower Maintenance Costs: Eliminates the need for fuse replacement.
• Improved Safety: Reduces the risk of fire and other hazards associated with overcurrent conditions.
• Simplified Design: Easy integration into existing circuit designs.

Specifications:

Key specifications (check the Littelfuse datasheet for precise values):

• Hold Current (Ihold): The maximum current the device can carry continuously without tripping. Typically around 0.15A.
• Trip Current (Itrip): The current at which the device will trip and increase its resistance.
• Voltage Rating (Vmax): The maximum voltage the device can withstand.
• Operating Temperature Range: The range of temperatures the device can operate within.

Refer to the official Littelfuse SMD0805P015TF datasheet for comprehensive specifications and performance data.
