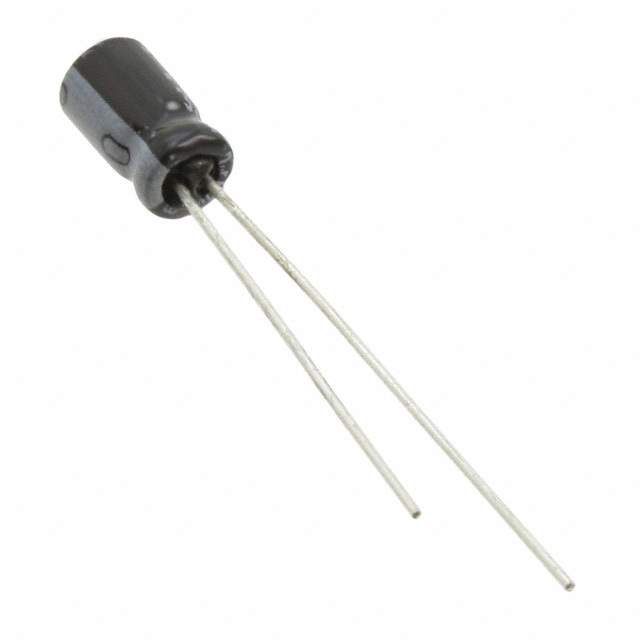

Same model may have multiple batches, images only for reference.

USR1C100MDD

Name: USR1C100MDD
Brand: Nichicon
SKU: 533953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	USR1C100MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 16V RADIAL
Datasheet	USR1C100MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Status	Active
Capacitance	10μF
Tolerance	±20%
Voltage Rating	16V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C to 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	28mA @ 120Hz
Ripple Current - High Frequency	42mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Height - Seated (Max)	0.276" (7.00mm)
Mounting	Through Hole
Dimension	Radial, Can
Win Source Part Number	1116769-USR1C100MDD
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian USR1C100MDD CAD Model

Description

The Nichicon 1116769-USR1C100MDD capacitor is a general-purpose electronic component with a capacitance of 10μF and a voltage rating of 16V.

Capacitance: 10μF
Voltage Rating: 16V
Tolerance: ±20%
Lifetime: 2000 Hrs @ 85°C
Polarization: Polarized
Mounting Style: Through-Hole
Lead Spacing: 0.059" (1.50mm)
Ripple Current: 28mA @ 120Hz, 42mA @ 10kHz
Packaging: Bulk
Height: 0.276" (7.00mm)
