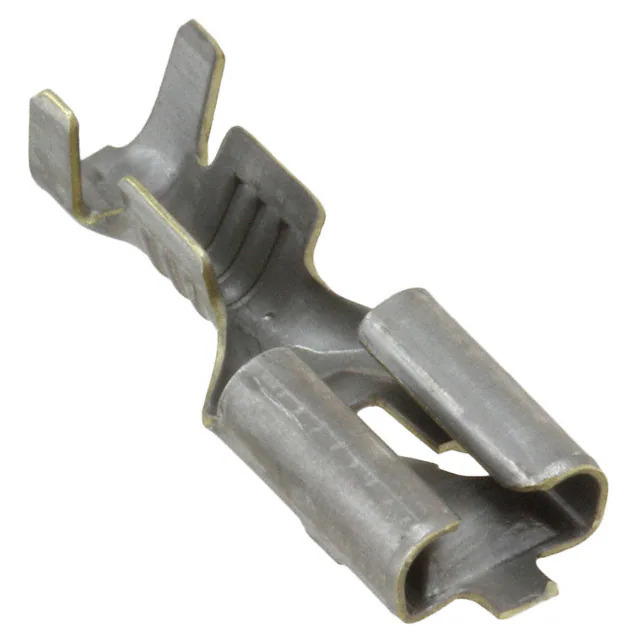

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.252" (6.40mm)
Length - Overall 0.630" (16.00mm)
Termination Crimp
Wire Gauge 15-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 280919
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364927-280919-2
Ultra Librarian 3D Model Ultra Librarian 280919-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston terminal is a quick connect, quick disconnect connector used in connectors and interconnects.

  • Wire Gauge: 15-20 AWG
  • Termination: crimp
  • Insulation: non-insulated
  • Contact Finish: tin
  • Product Status: active
  • Packaging: tape & reel
  • Series: Fastin-Faston
  • Base Product Number: 280919
  • Category: connectors, interconnects - terminals - quick connects, quick disconnect connectors
  • Applications: various applications requiring quick connect and disconnect capabilities
