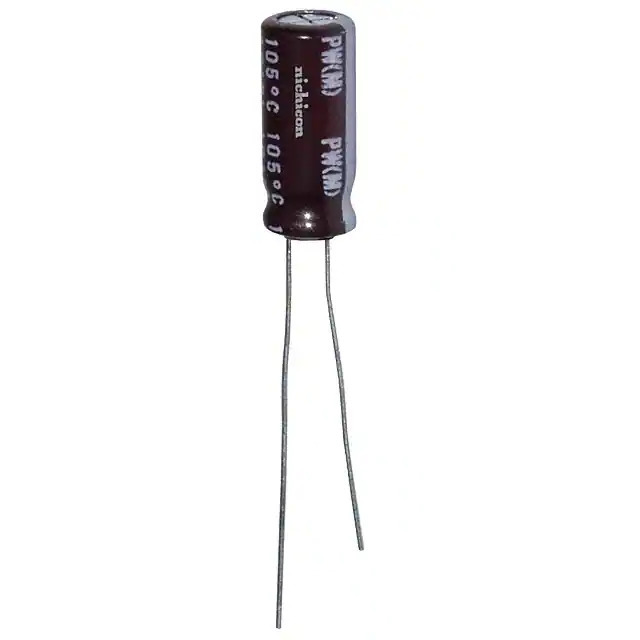

Same model may have multiple batches, images only for reference.
UPW1C471MPD6 Nichicon
Same model may have multiple batches, images only for reference.

UPW1C471MPD6

Part No UPW1C471MPD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UPW1C471MPD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 547.5 mA @ 120 Hz
Ripple Current @ High Frequency 730 mA @ 100 kHz
Impedance 85 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358105-UPW1C471MPD6
Ultra Librarian 3D Model Ultra Librarian UPW1C471MPD6 CAD Model

Description

The UPW1C471MPD6 is an aluminum electrolytic capacitor from Nichicon's UPW series.

  • Manufacturer: Nichicon
  • Series: UPW
  • Application: General Purpose
  • Capacitance: 470 μF
  • Tolerance: ±20%
  • Voltage - Rated: 16 V
  • Ripple Current @ Low Frequency: 547.5 mA @ 120 Hz
  • Ripple Current @ High Frequency: 730 mA @ 100 kHz
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.591" (15.00mm)
  • Mounting Type: Through Hole
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Package / Case: Radial, Can
  • Packaging: Bulk
  • Lifecycle Status: Not For New Designs
