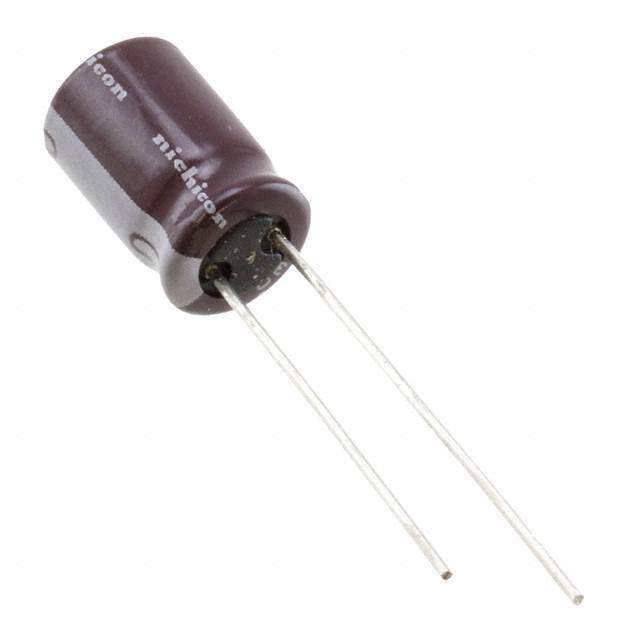

Same model may have multiple batches, images only for reference.

UPS1J470MPD

Name: UPS1J470MPD
Brand: Nichicon
SKU: 1156364
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPS1J470MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 63V RADIAL / 47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPS1J470MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPS
Package	Bulk
Product Status	Not For New Designs
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	52.7 mA @ 120 Hz
Ripple Current @ High Frequency	310 mA @ 100 kHz
Impedance	650 mOhms
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	-UPS1J470MPD
Standard Package	3,000
Win Source Part Number	1156364-UPS1J470MPD
Ultra Librarian 3D Model	Ultra Librarian UPS1J470MPD CAD Model

Description

The Nichicon UPS1J470MPD is an aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 63V.

Capacitance: 47 µF
Voltage Rating: 63V
Tolerance: ±20%
Lead Spacing: 0.138" (3.50mm)
Ripple Current (Low Frequency): 52.7 mA @ 120 Hz
Ripple Current (High Frequency): 310 mA @ 100 kHz
Package: radial, can
Mounting: through hole
Height: 0.512" (13.00mm)
Diameter: 0.315" (8.00mm)
Operating Temperature: -55°C to 105°C
Lifetime: 2000 Hrs @ 105°C
