Same model may have multiple batches, images only for reference.

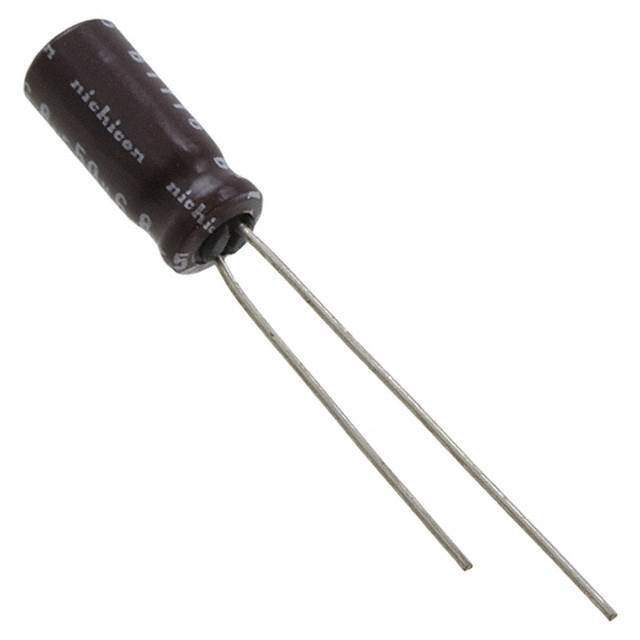

UPM1H100MDD Real Image
Same model may have multiple batches, images only for reference.

UPM1H100MDD

Part No UPM1H100MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Bulk
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 57 mA @ 120 Hz
Ripple Current @ High Frequency 115 mA @ 10 kHz
Impedance 1.4 Ohms
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 6,000
Win Source Part Number 1131636-UPM1H100MDD
Ultra Librarian 3D Model Ultra Librarian UPM1H100MDD CAD Model

Description

Nichicon's UPM series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 10 µF and a voltage rating of 50 V. It has a tolerance of ±20% and an impedance of 1.4 Ohms.

  • Series: UPM
  • Capacitance: 10 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Impedance: 1.4 Ohms
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 57 mA
  • Ripple Current (High Frequency): 115 mA
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Dimension: 0.197" Dia (5.00mm)
  • Height: 0.492" (12.50mm)
  • Lifetime: 2000 Hours @ 105°C
  • Status: Not for New Designs
