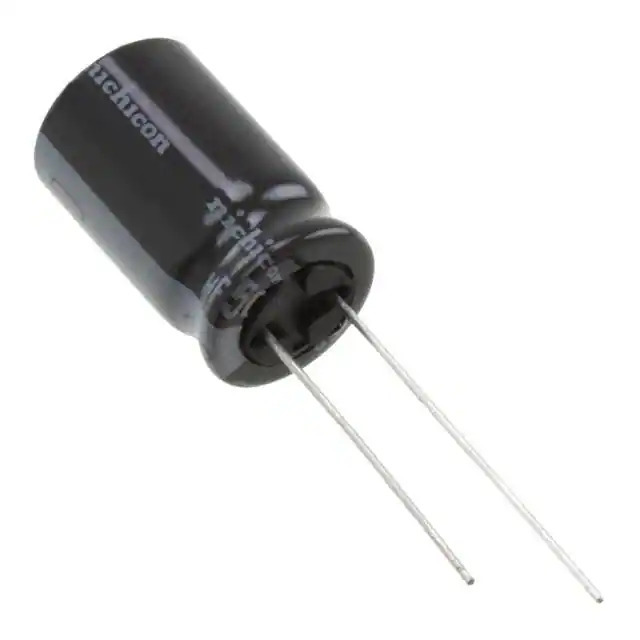

UHW1H471MHD6 Nichicon
Same model may have multiple batches, images only for reference.

UHW1H471MHD6

Part No UHW1H471MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 50V RADIAL / 470 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHW1H471MHD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHW
Package Bulk
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.15 A @ 120 Hz
Ripple Current @ High Frequency 2.3 A @ 100 kHz
Impedance 27 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357936-UHW1H471MHD6
Ultra Librarian 3D Model Ultra Librarian UHW1H471MHD6 CAD Model

Description

The UHW1H471MHD6 is a radial aluminum electrolytic capacitor from Nichicon.

  • Application: General Purpose
  • Capacitance: 470 µF
  • Voltage - Rated: 50 V
  • Tolerance: ±20%
  • Temperature Range: -40°C to 105°C
  • Ripple Current - Low Frequency: 1.15 A @ 120 Hz
  • Ripple Current - High Frequency: 2.3 A @ 100 kHz
  • Lead Spacing: 5.00mm
  • Size: 0.492" (12.50mm) Diameter
  • Height: 0.866" (22.00mm)
