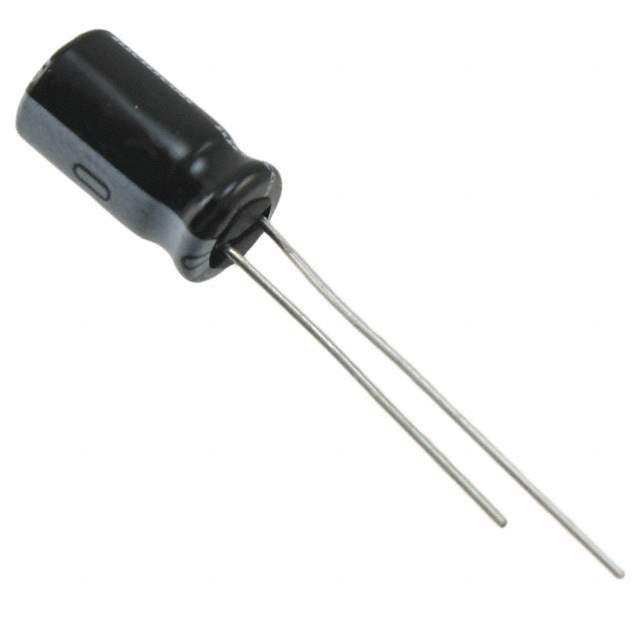

UHE1H560MED1TD Real Image
Same model may have multiple batches, images only for reference.

UHE1H560MED1TD

Part No UHE1H560MED1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 50V RADIAL / 56 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 206.5 mA @ 120 Hz
Ripple Current @ High Frequency 295 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-16224-2-ND,493-16224-1,493-16224-2,493-16224-3,UHE1H560MED1TD-ND,Q7987743
Standard Package 2,000
Win Source Part Number 1165501-UHE1H560MED1TD
Ultra Librarian 3D Model Ultra Librarian UHE1H560MED1TD CAD Model

Description

The UHE1H560MED1TD from Nichicon is an aluminum electrolytic capacitor that has a capacitance of 56μF and a voltage rating of 50V.

  • Tolerance: ±20%
  • Series: UHE
  • Mounting Type: Through-hole
  • Market Popularity: Low
  • Design Status: Not for new designs
  • Ripple Current: 206.5 mA @ 120 Hz and 295 mA @ 100 kHz
